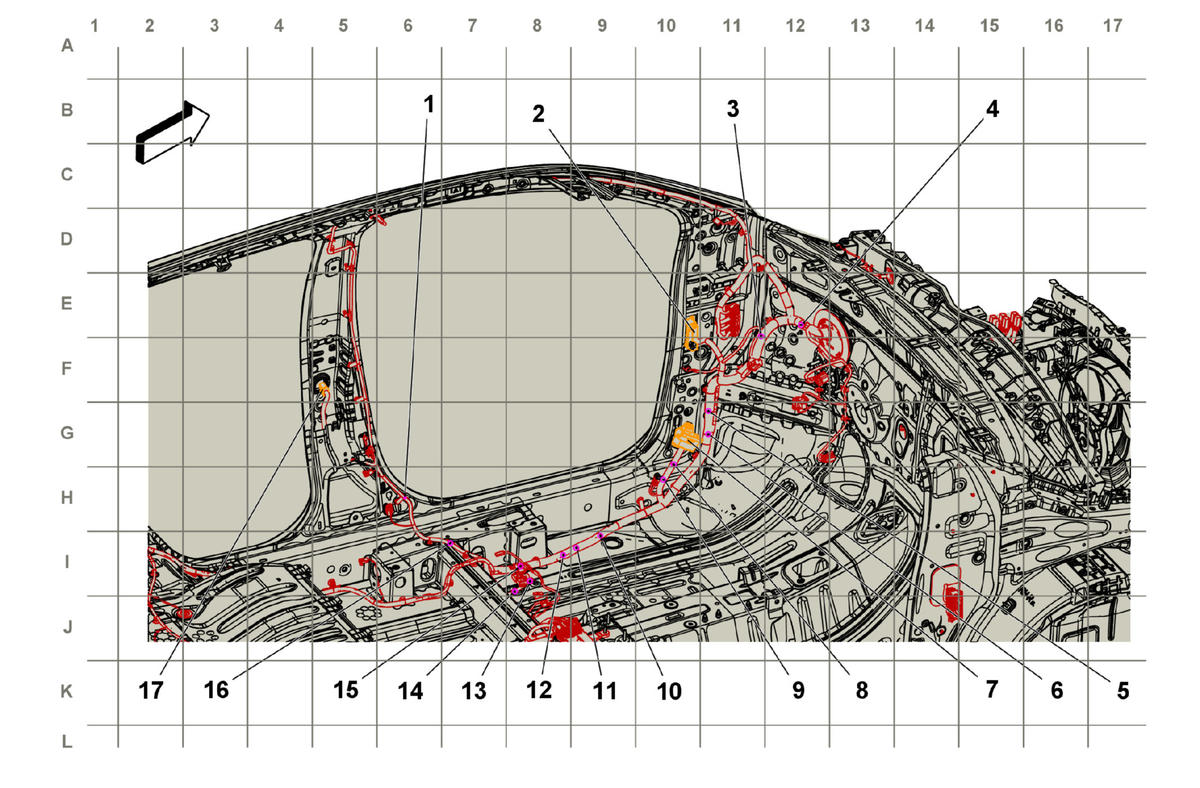

Body Harness Routing - Left Side of the Passenger Compartment (LHD)
WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness (LHD) , or X500 Driver Door Harness to Body Harness (RHD) |
| 2. J311 Body Harness |
| 3. J302 Body Harness |
| 4. J313 Body Harness |
| 5. J314 Body Harness |
| 6. X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness |
| 7. J316 Body Harness |
| 8. J317 Body Harness |
| 9. J319 Body Harness |
| 10. J320 Body Harness |
| 11. J321 Body Harness |
| 12. J324 Body Harness |
| 13. J323 Body Harness |
| 14. J322 Body Harness |
| 15. J331 Body Harness |
| 16. J332 Body Harness |
| 17. X700 Body Harness to Left Rear Door Harness X700 Body Harness to Left Rear Door Harness |
