Rear of the Vehicle Components

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

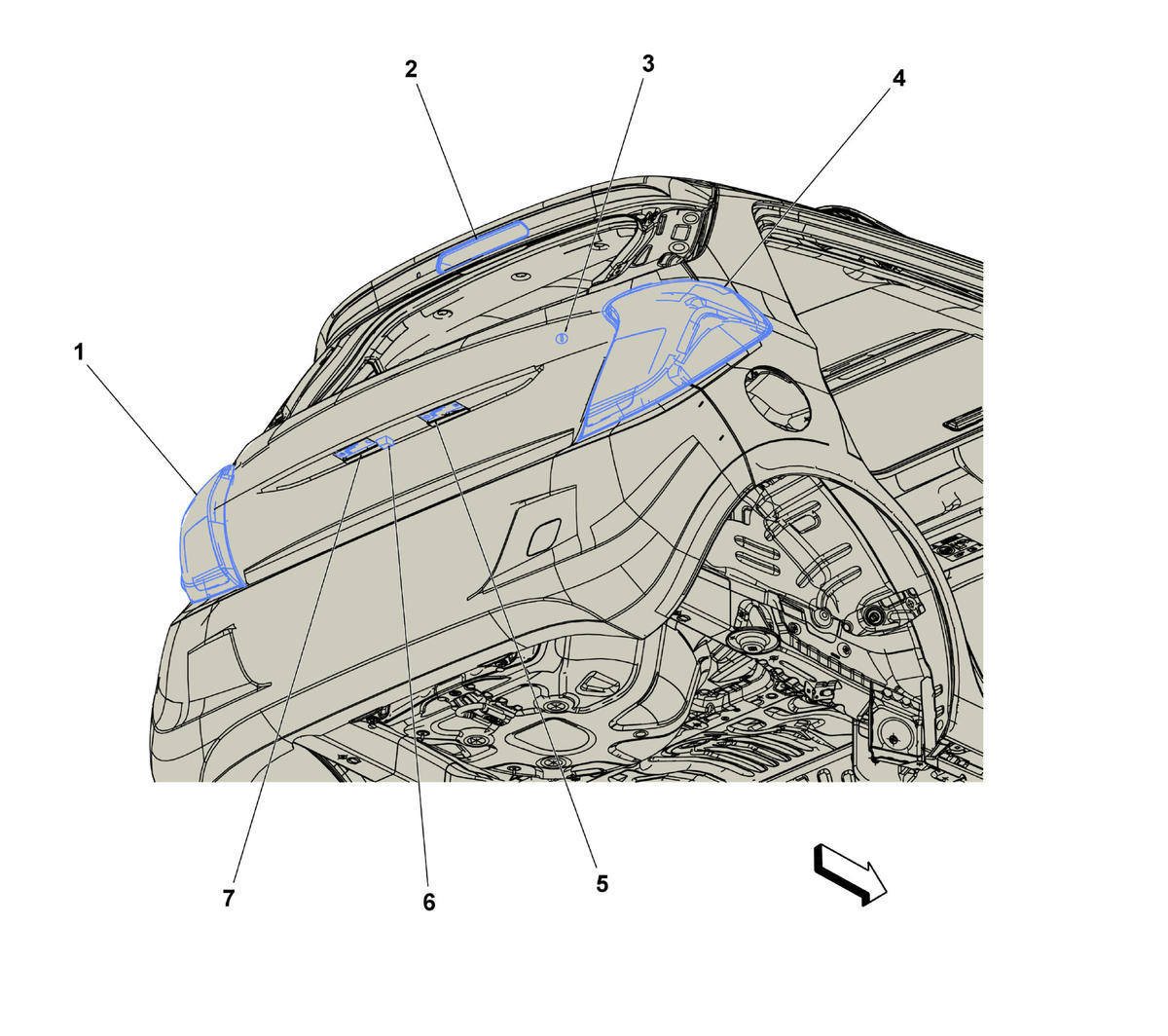

GM4877916Courtesy of GENERAL MOTORS COMPANY
Rear of the Vehicle Components

Items
1. E42L Tail Lamp Assembly - Left
2. E6 Center High Mounted Stop Lamp (TS6 or TT9) E6 Center High Mounted Stop Lamp (TS6)E6 Center High Mounted Stop Lamp (TT9)
3. E42R Tail Lamp Assembly - Right
