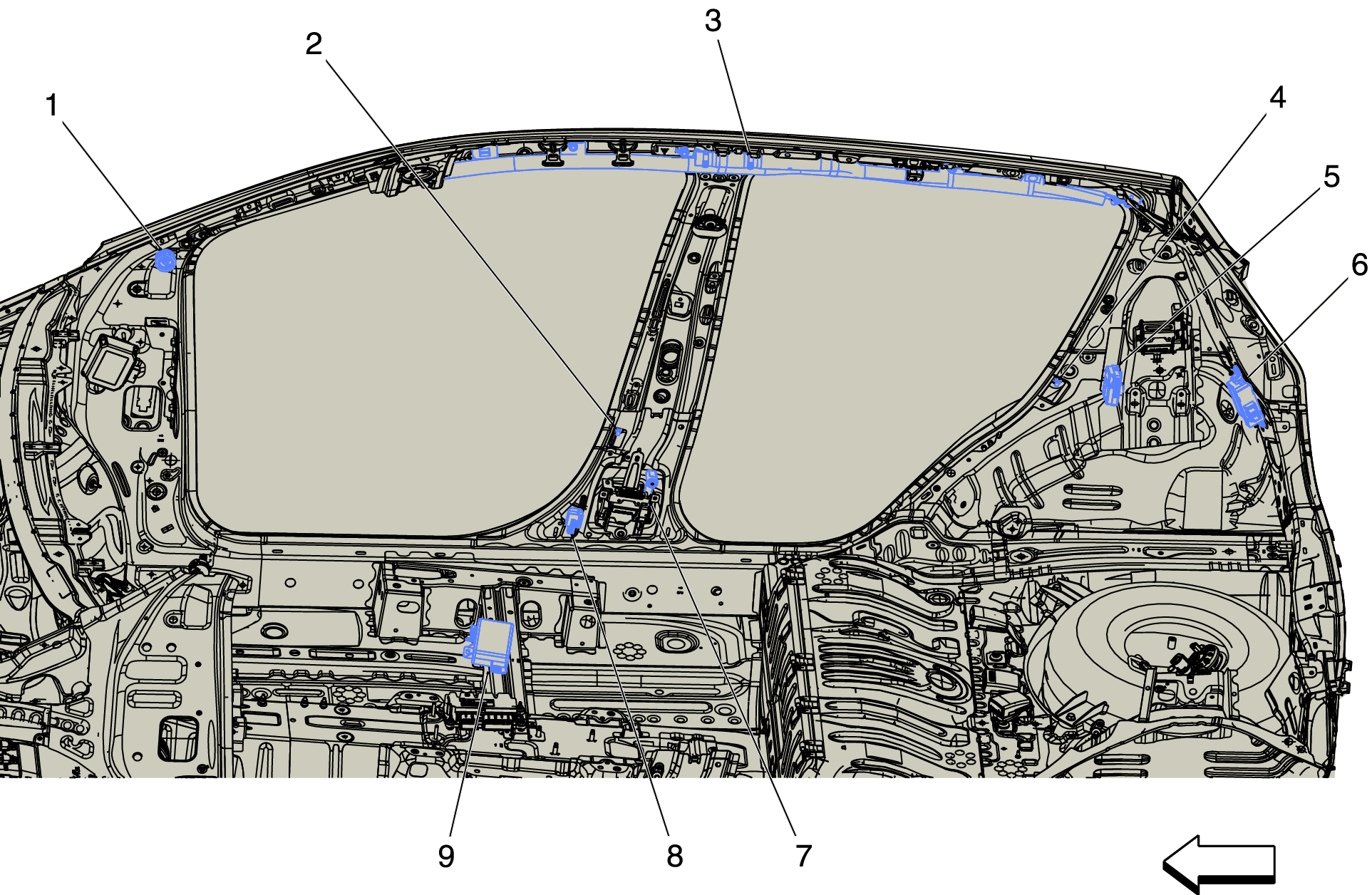

Right Side of the Passenger Compartment Components (LHD)

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
2. B28P Door Ajar Switch - Passenger B28P Door Ajar Switch - Passenger
3. F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right (AYC)F105R Roof Rail Air Bag - Right (AYF)
4. B28RR Door Ajar Switch - Right Rear B28RR Door Ajar Switch - Right Rear
5. K77 Remote Control Door Lock Receiver (XL7 or XL8) K77 Remote Control Door Lock Receiver
6. K182 Parking Assist Control Module (UD7) K182 Parking Assist Control Module X1 K182 Parking Assist Control Module X2 K182 Parking Assist Control Module X3
7. F112P Seat Belt Retractor Pretensioner - Passenger (AWV or AYC) F112P Seat Belt Retractor Pretensioner - Passenger (-AYF)F112P Seat Belt Retractor Pretensioner - Passenger (AYF)
8. B63RF Side Impact Sensor - Right Front (AYC, AYF) B63RF Side Impact Sensor - Right Front (AYC)B63RF Side Impact Sensor - Right Front (AYF)
9. C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery
