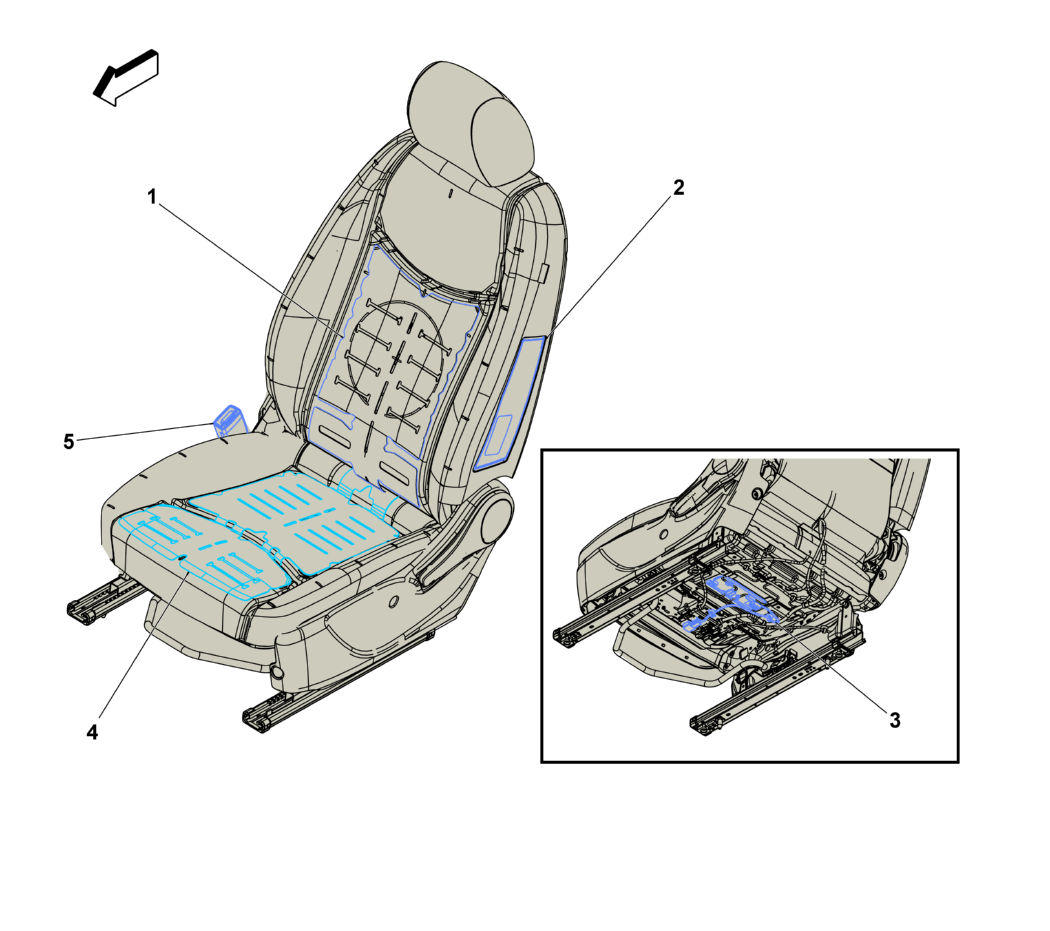

Passenger Seat Components (RHD)
WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Passenger Seat Components (RHD)
| Items |
|---|
| 1. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
| 2. F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger |
| 3. B60 Passenger Presence Sensor (UHH without AL0) B60 Passenger Presence Sensor |
| 4. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion |
| 5. B88P Seat Belt Switch - Passenger |
