Front of the Vehicle Components (1 of 2)
WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

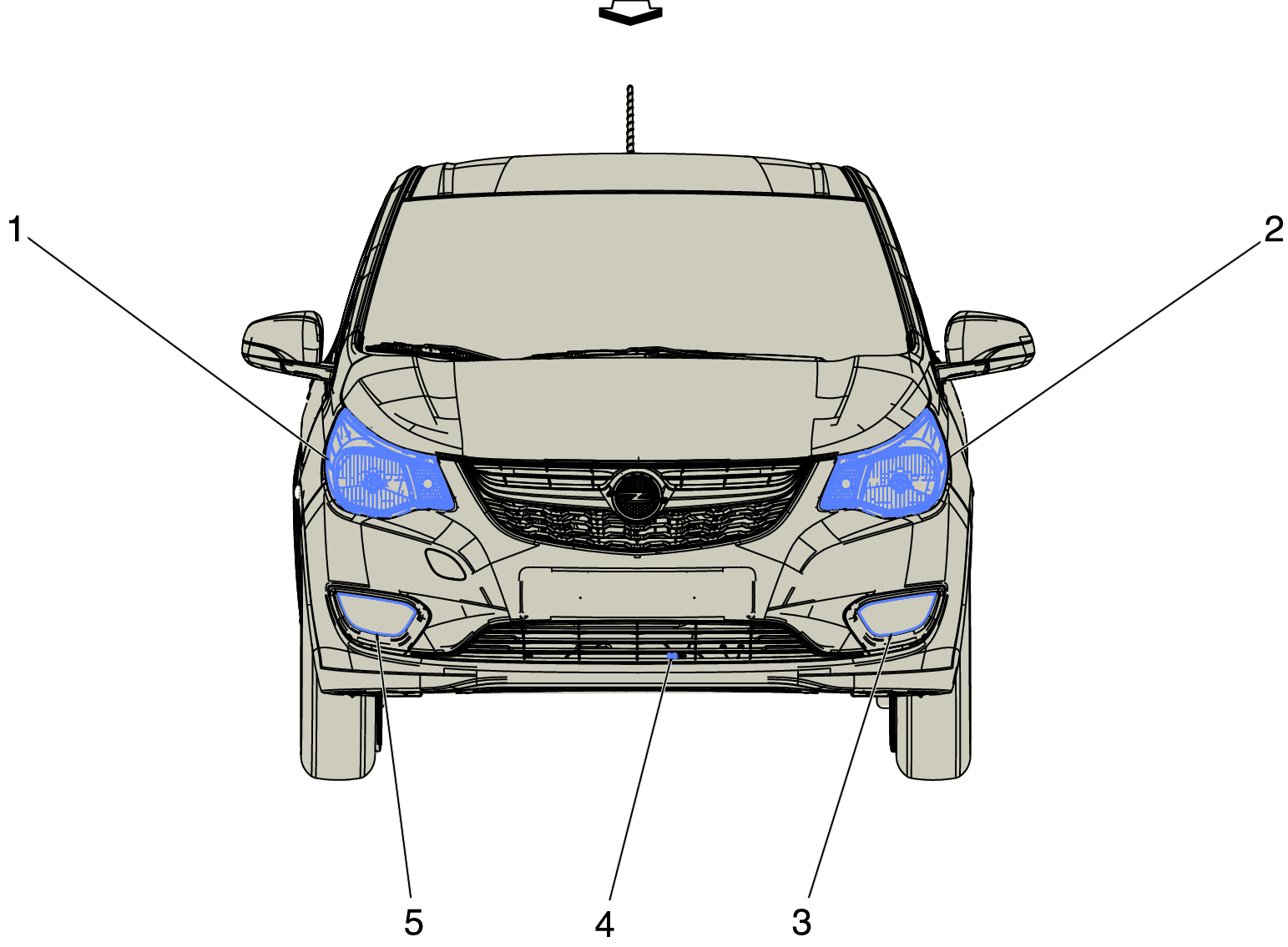

Front of the Vehicle Components (1 of 2)
| Items |
|---|
| 1. E13R Headlamp - Right E13R Headlamp - Right (SBM+TUJ)E13R Headlamp - Right (SBM-TUJ) |
| 2. E13L Headlamp - Left E13L Headlamp - Left (SBM+TUJ)E13L Headlamp - Left (SBM-TUJ) |
| 3. E4A Cornering Lamp - Left |
| 4. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 5. E29RF Fog Lamp - Right Front (T87) E29RF Fog Lamp - Right Front |
