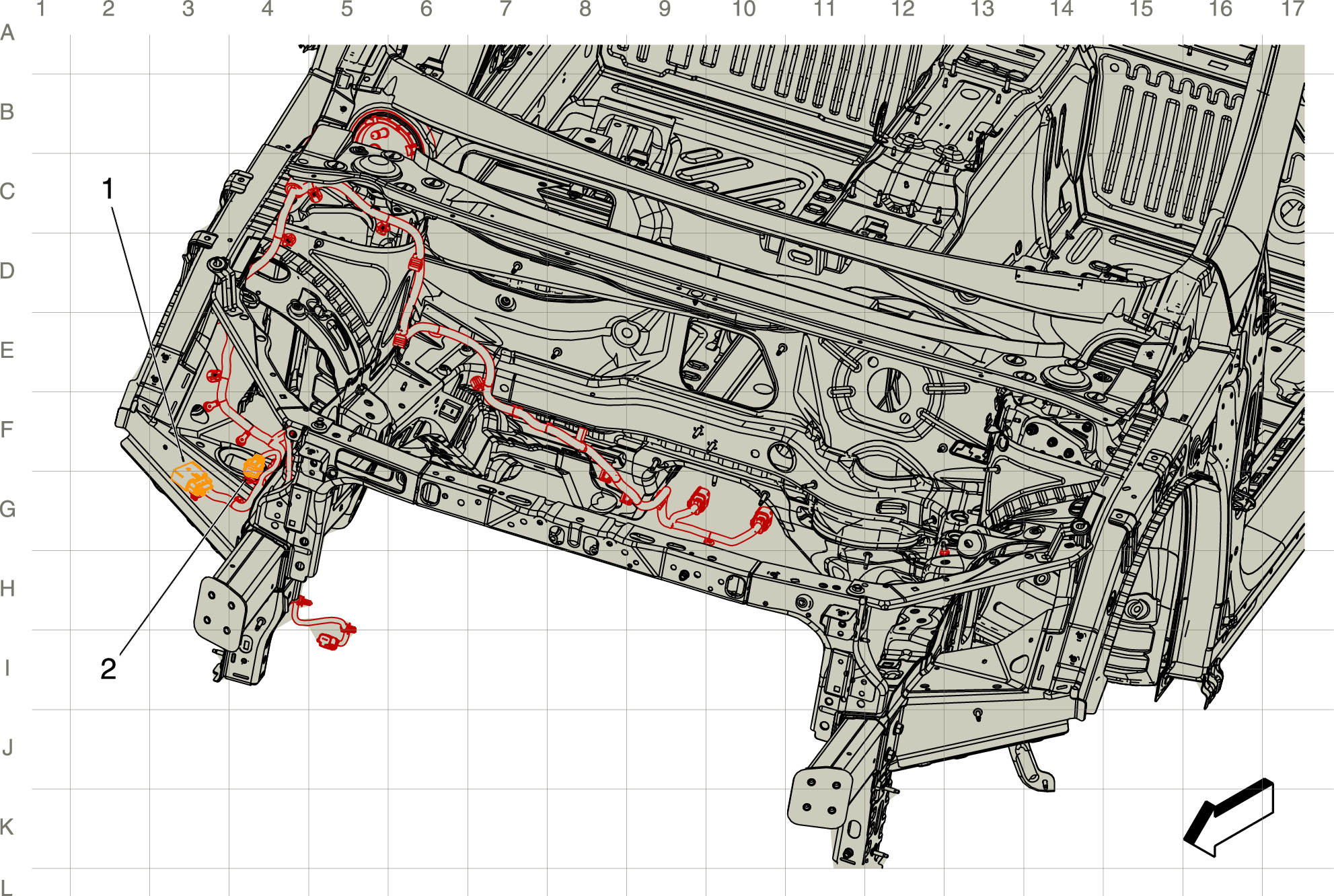

Right Side of Engine Compartment Harness Routing

GM4165845Courtesy of GENERAL MOTORS COMPANY
Items
1. X121 Forward Lamp Harness to Body Harness X121 Forward Lamp Harness to Body Harness
2. X120 Body Harness to Right Front Headlamp Harness X120 Body Harness to Right Front Headlamp Harness
