Right Rear of Passenger Compartment Harness Routing

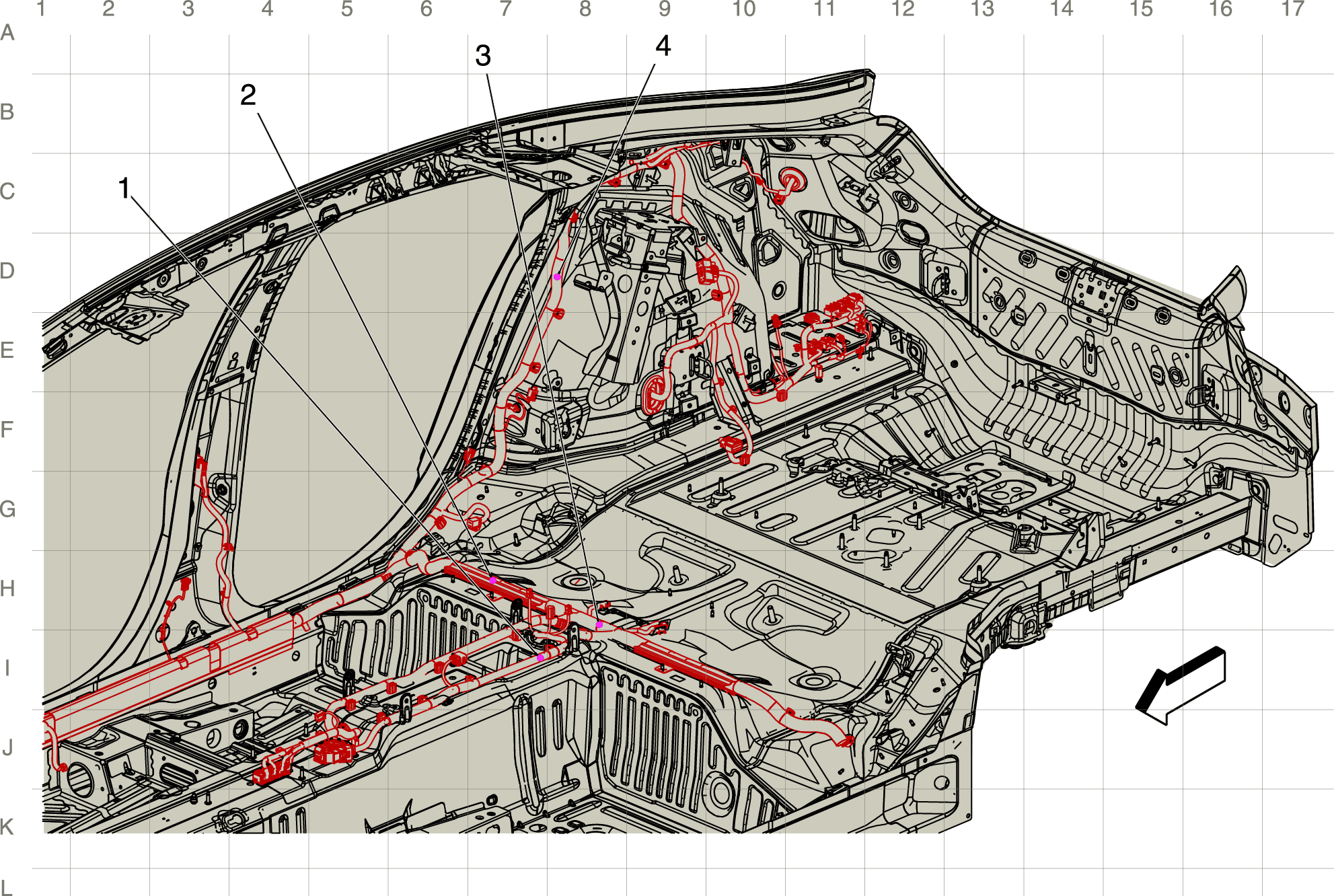

Right Rear of Passenger Compartment Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. J310 Body Harness
2. J222 Body Harness (KA1/KA6)
3. J376 Body Harness
4. J377 Body Harness
Courtesy of GENERAL MOTORS COMPANY
