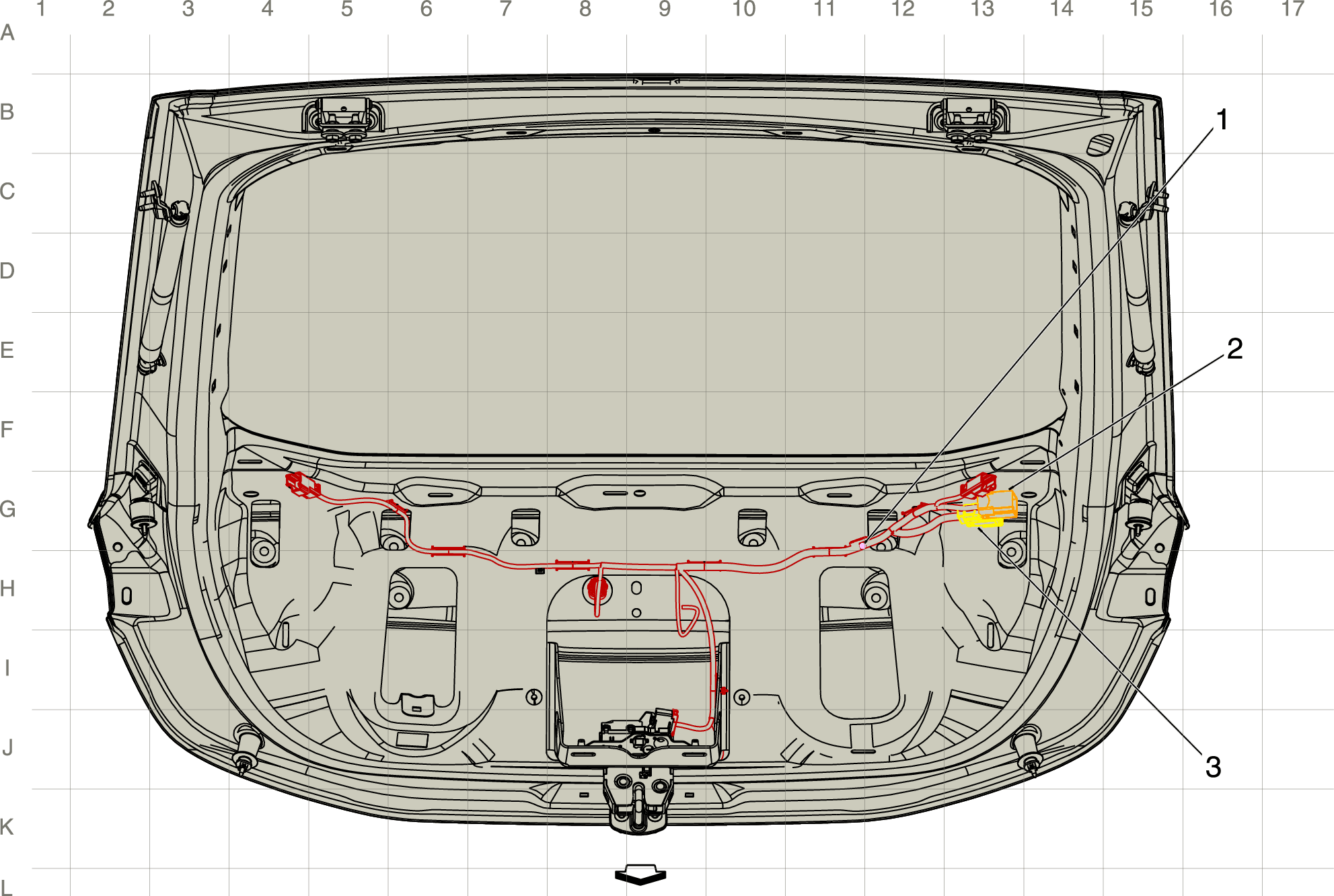

Liftgate Harness Routing

GM4165878Courtesy of GENERAL MOTORS COMPANY
Items
1. J902 Liftgate Harness
2. X905 Liftgate Jumper Harness to Liftgate Harness X905 Liftgate Jumper Harness to Liftgate Harness
3. X906 Liftgate Jumper Harness to Liftgate Harness X906 Liftgate Jumper Harness to Liftgate Harness
