Left Side of Engine Compartment Harness Routing

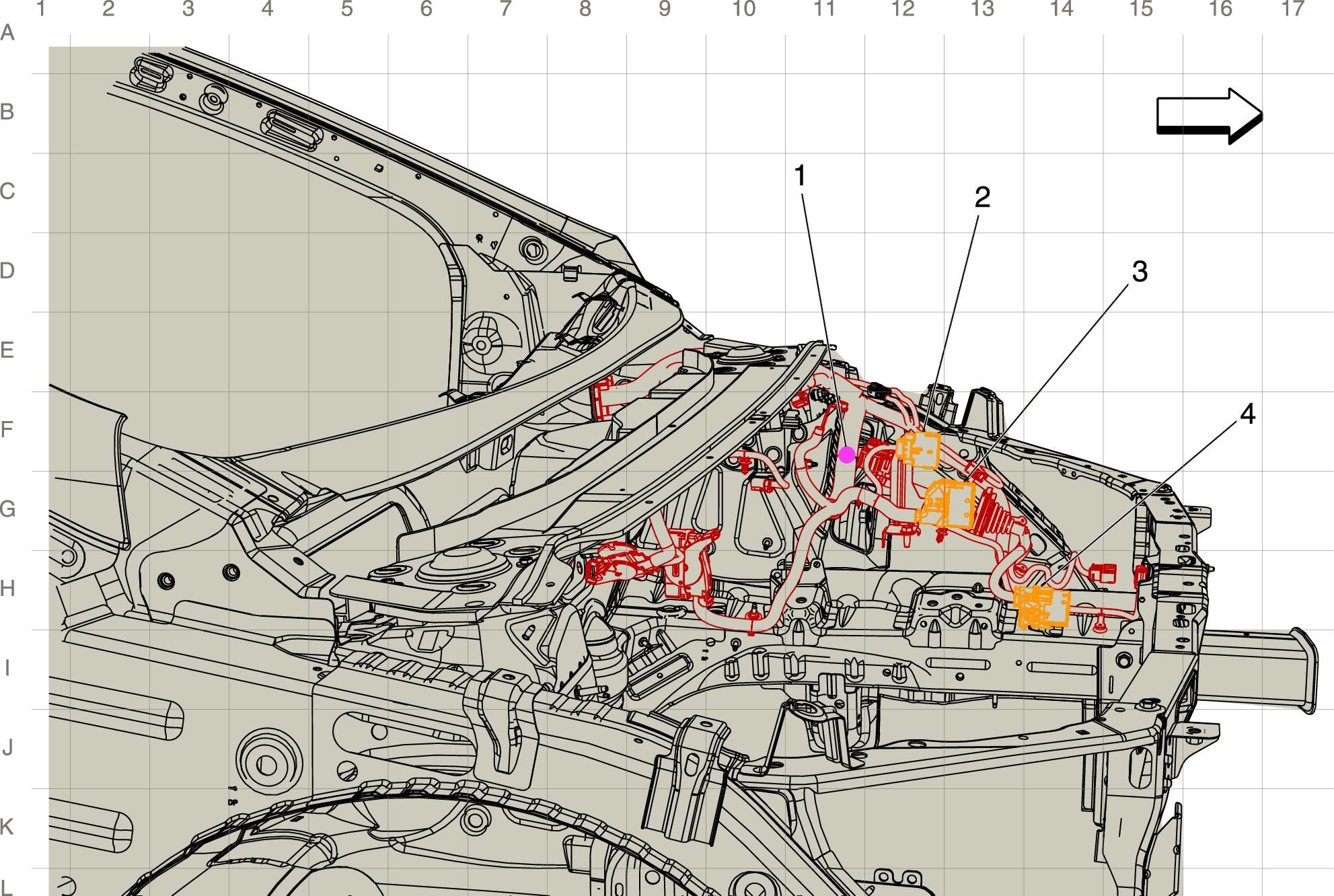

GM4165810Courtesy of GENERAL MOTORS COMPANY
Items
1. J139 Body Harness
2. X155 Engine Harness to Body Harness X155 Engine Harness to Body Harness
3. X190 Engine Harness to Body Harness X190 Engine Harness to Body Harness
4. X107 Forward Lamp Harness to Body Harness X107 Forward Lamp Harness to Body Harness
