Left Rear of Passenger Compartment Harness Routing

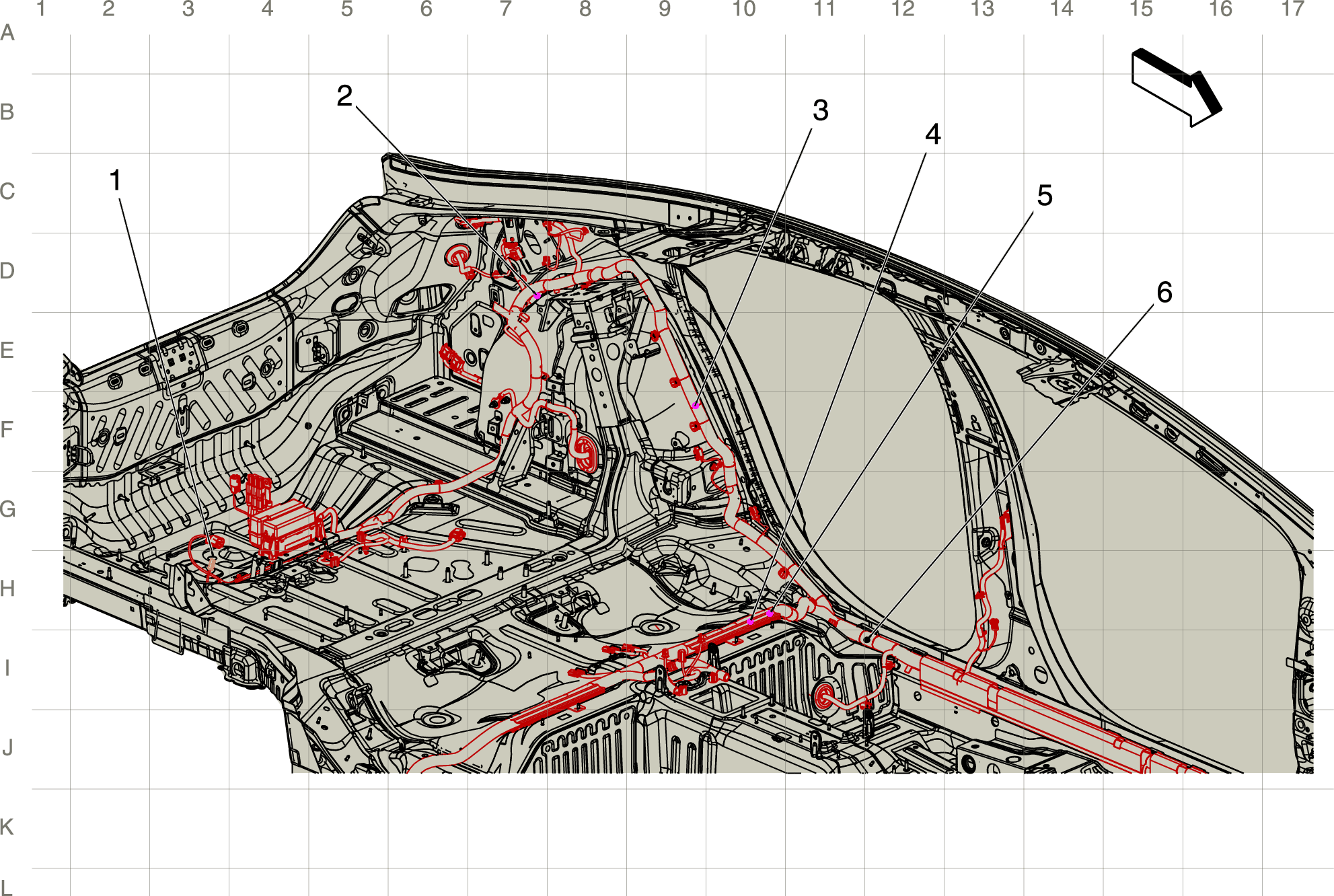

GM4584141Courtesy of GENERAL MOTORS COMPANY
Items
1. X452 Body Harness to Battery Cable Harness X452 Body Harness to Battery Cable Harness
2. J314 Headliner Harness
3. J407 Body Harness
4. J402 Body Harness
5. J308 Body Harness
6. J333 Body Harness
