Left Front Door Harness Routing

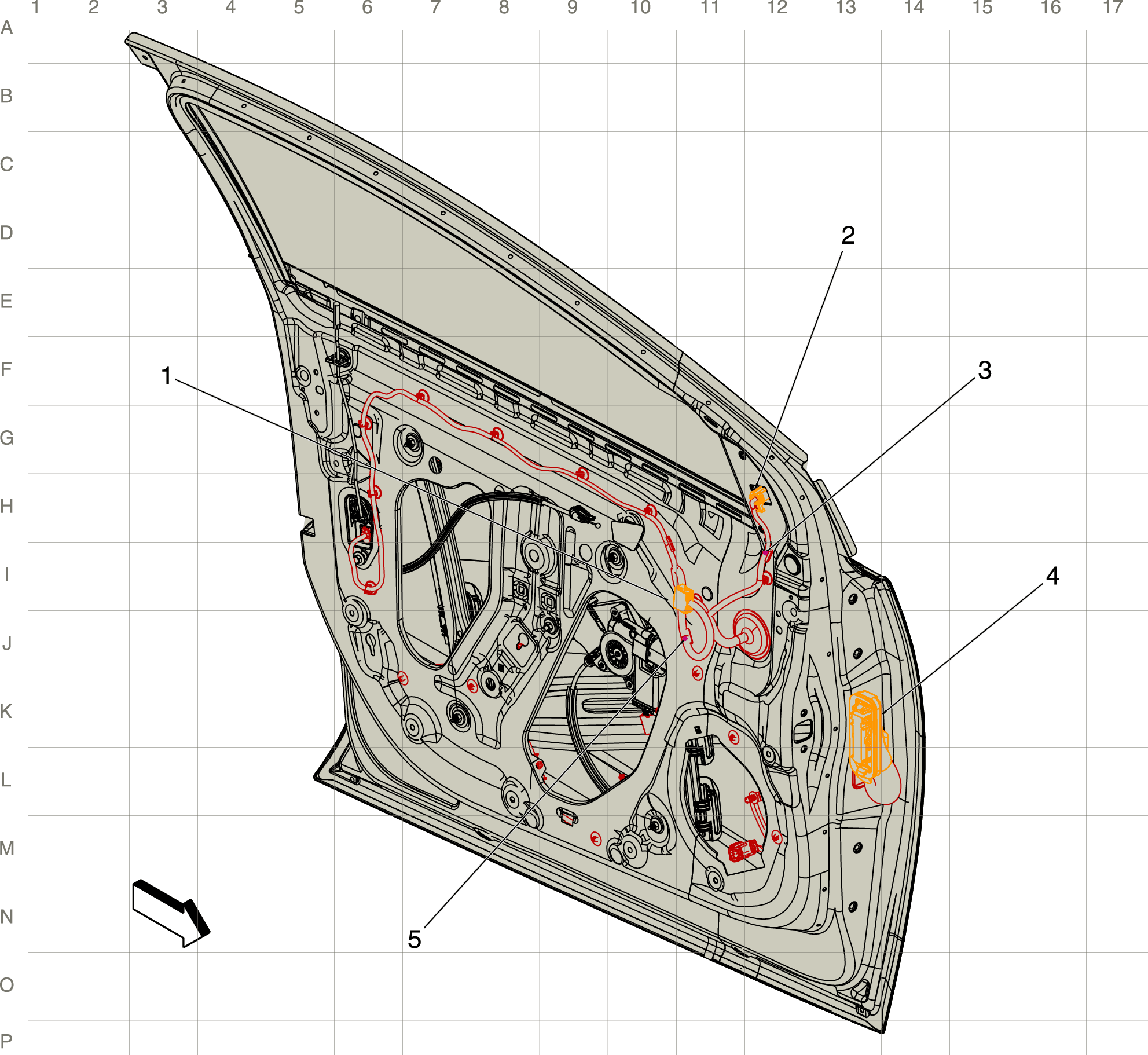

GM4165853Courtesy of GENERAL MOTORS COMPANY
Items
1. X505 Driver Door Harness to Door Harness X505 Driver Door Harness to Door Harness
2. X510 Driver Door Harness to Rearview Mirror Jumper Harness X510 Driver Door Harness to Rearview Mirror Jumper Harness
3. J515 Driver Door Harness
4. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness
5. J514 Driver Door Harness
