Hybrid/EV Battery Pack Harness Routing

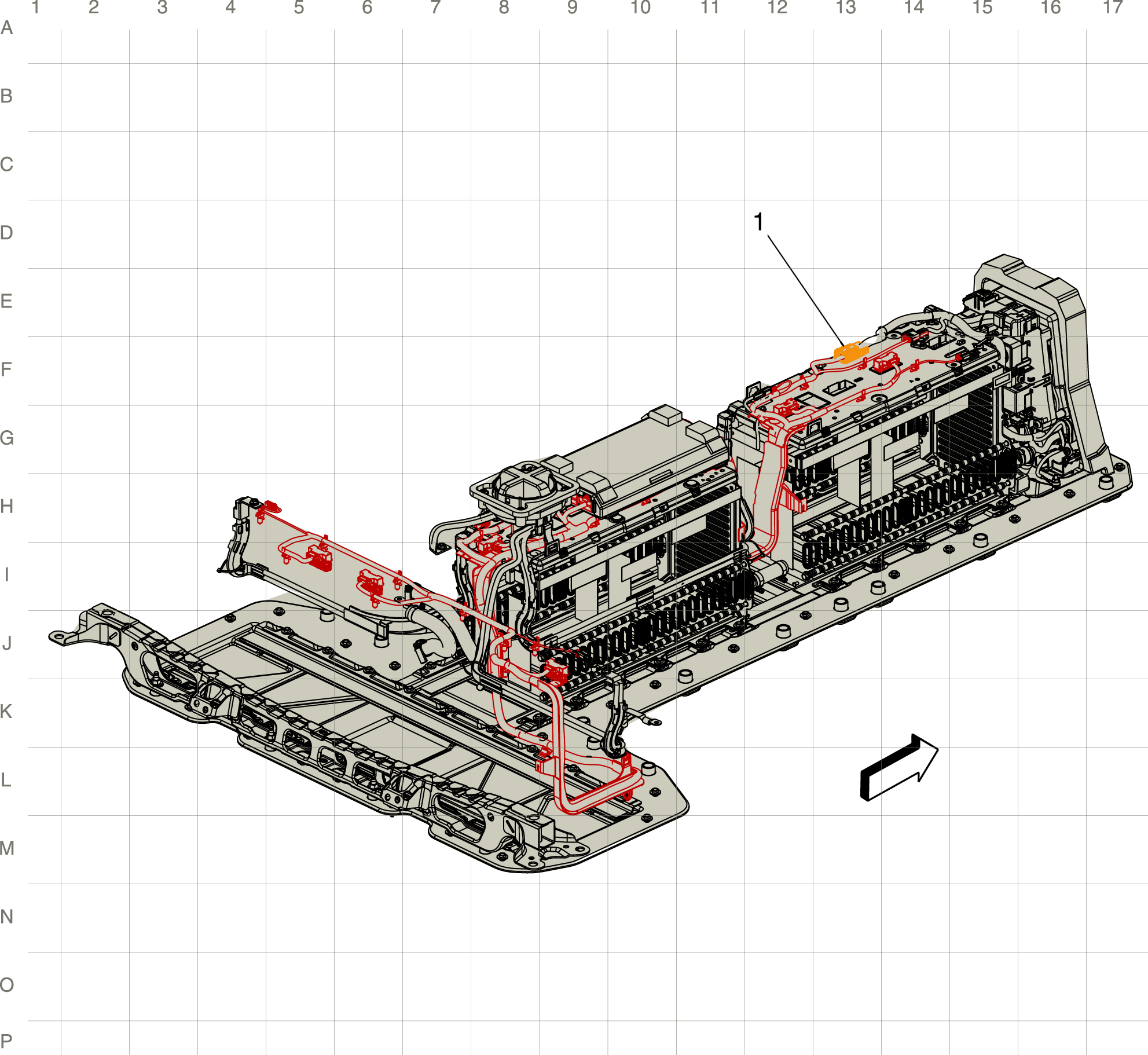

GM4779259Courtesy of GENERAL MOTORS COMPANY
Items
1. X359 Auxiliary Battery Cable Harness to Hybrid Powertrain Jumper Harness X359 Auxiliary Battery Cable Harness to Hybrid Powertrain Jumper Harness
