Front of Engine Compartment Harness Routing

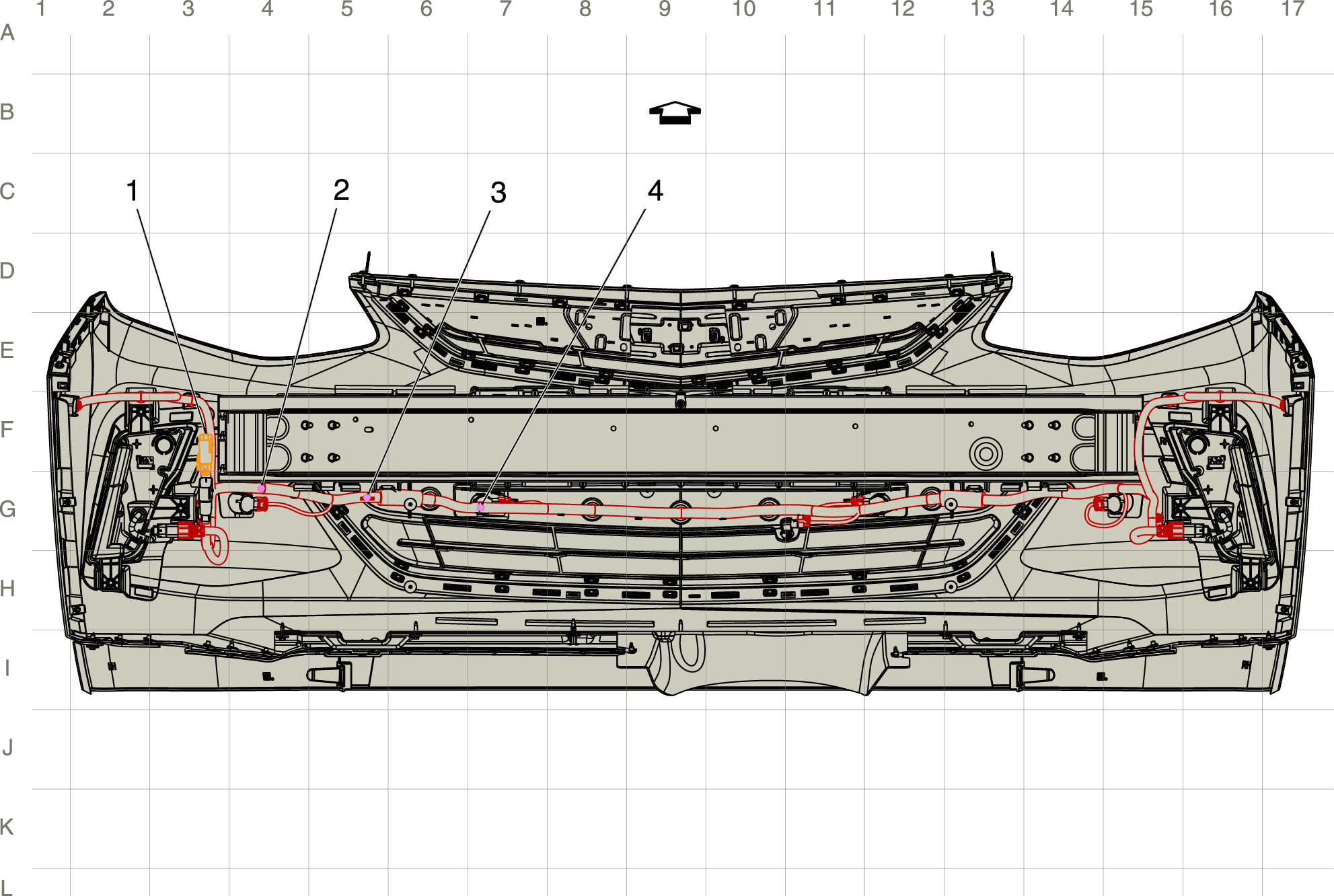

GM4165804Courtesy of GENERAL MOTORS COMPANY
Items
1. X102 Forward Lamp Harness to Cooling Fan Harness X102 Forward Lamp Harness to Cooling Fan Harness
2. X104 Cooling Fan Harness to Forward Lamp Harness X104 Cooling Fan Harness to Forward Lamp Harness
3. J110 Cooling Fan Jumper Harness
