Front Fascia Harness Routing

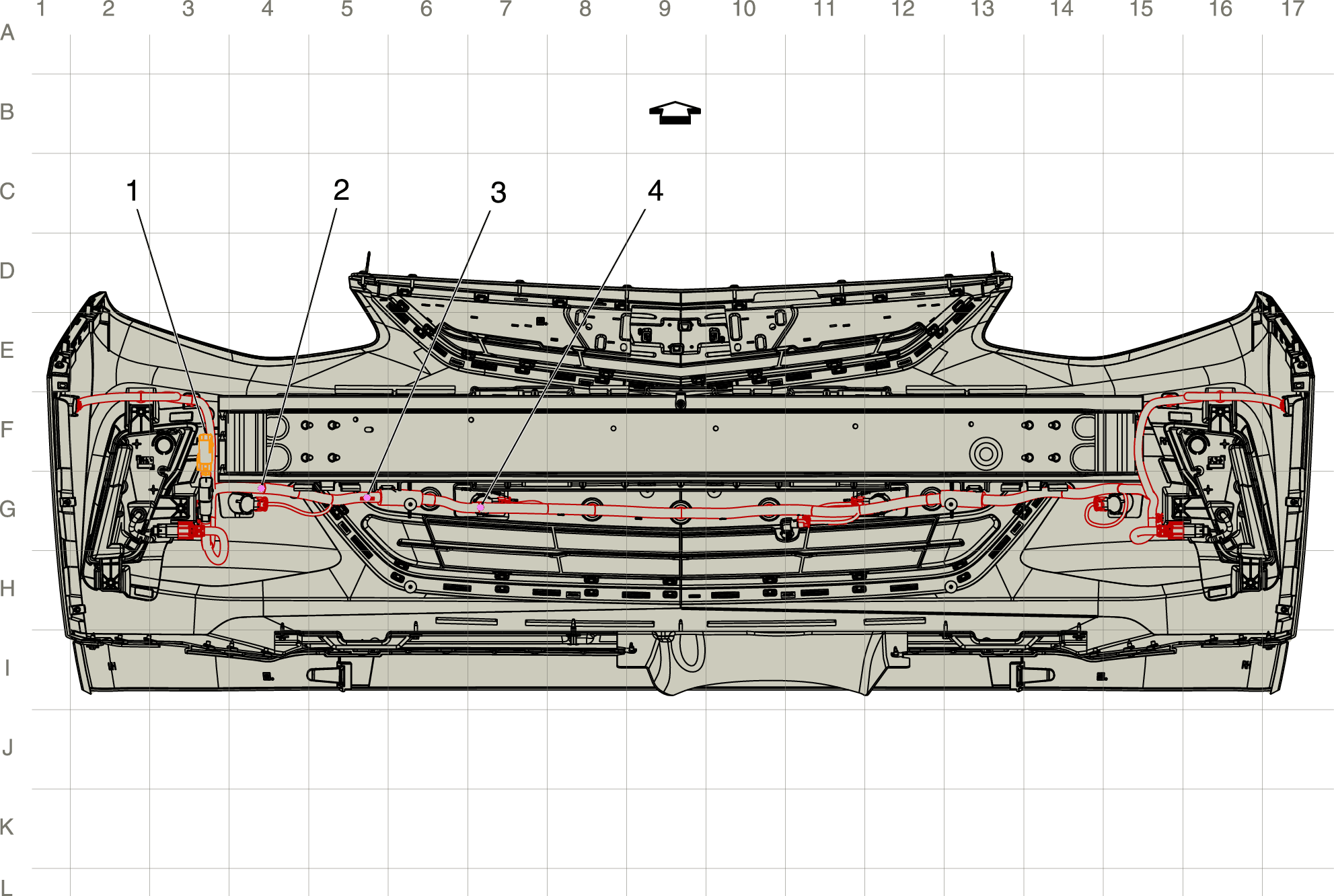

GM4165787Courtesy of GENERAL MOTORS COMPANY
Items
1. X100 Forward Lamp Harness to Front Fascia Harness X100 Forward Lamp Harness to Front Fascia Harness (-UFQ)X100 Forward Lamp Harness to Front Fascia Harness (BOP)X100 Forward Lamp Harness to Front Fascia Harness (UFQ)
2. J102 Front Fascia Harness
3. J101 Front Fascia Harness
4. J100 Front Fascia Harness
