Center Console Harness Routing

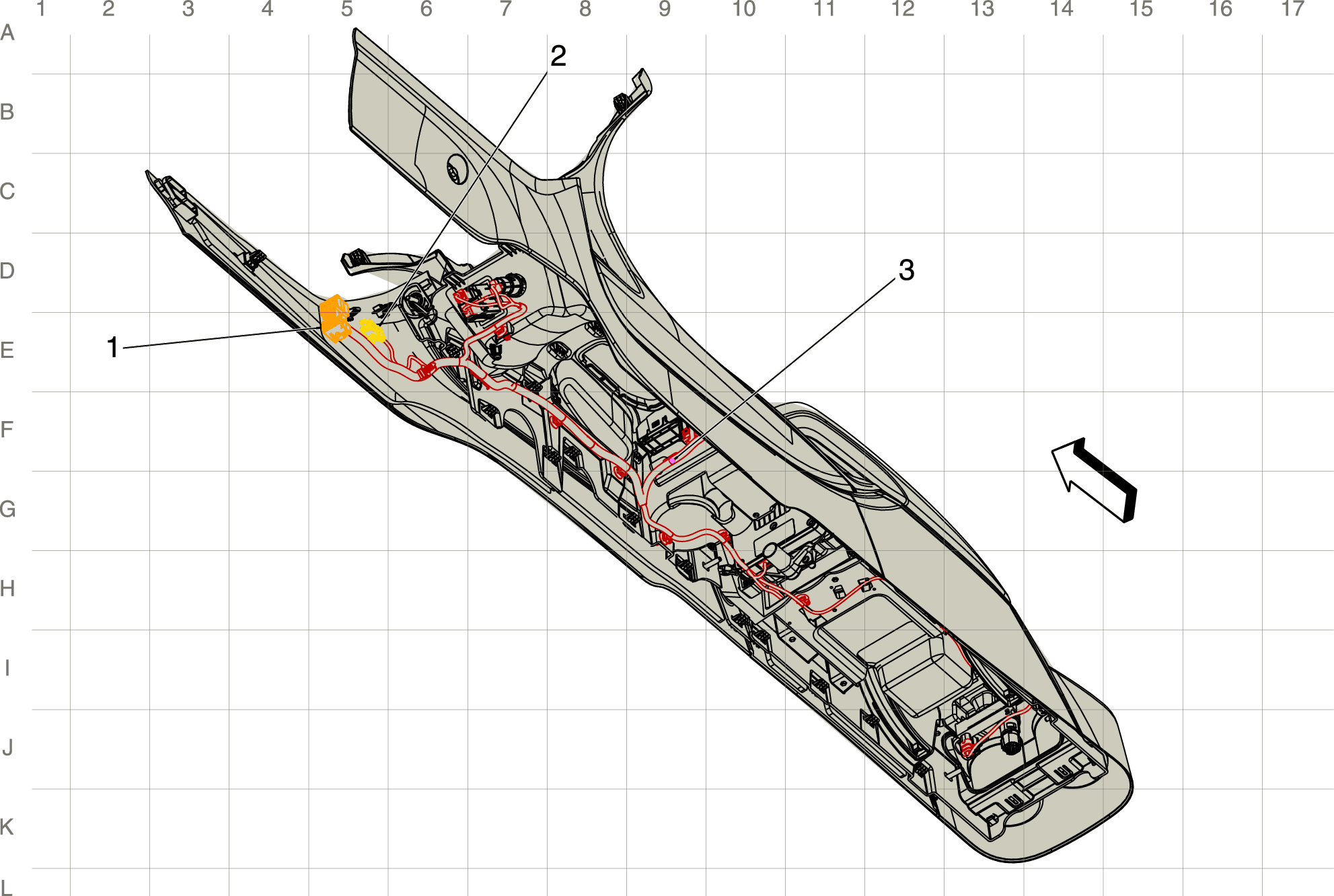

GM4165863Courtesy of GENERAL MOTORS COMPANY
Items
1. X315 Floor Console Harness to Instrument Panel Harness X315 Floor Console Harness to Instrument Panel Harness
2. X316 Instrument Panel Harness to Floor Console Harness (USB) X316 Instrument Panel Harness to Floor Console Harness
3. J350 Headliner Harness
