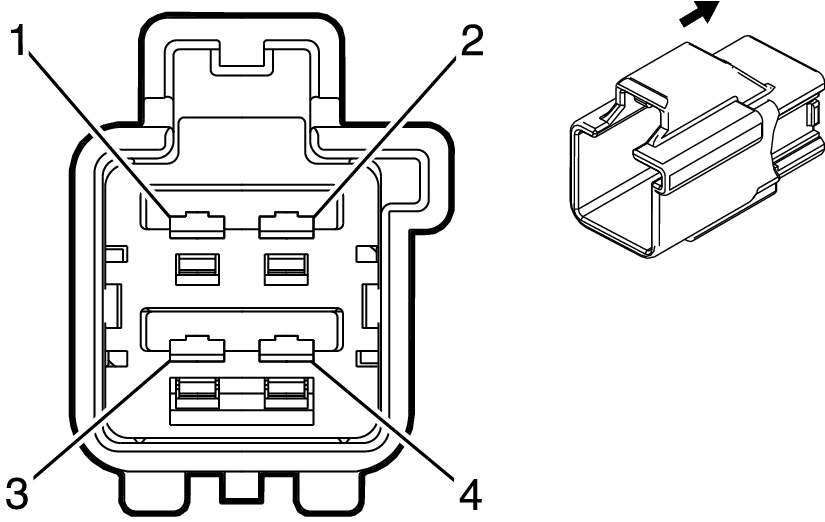

X340 Body Harness to Seat Heating Control Module Jumper Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-6446-40
- Service Connector: 19368658
- Description: 4-Way F YESC Kaizen Series (L-GY)
|
Connector Part Information
- Harness Type: Seat Heating Control Module Jumper
- OEM Connector: Not Available
- Service Connector: Service by Harness
- Description: 4-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1 |
RD/GN |
1840 |
I |
- |
Secondary Fused Battery Positive Voltage 18 |
1 |
1 |
RD/GN |
1840 |
II |
- |
| 2 |
0.35 |
GN/BU |
6133 |
I |
- |
Body Control Module LIN Bus 2 |
2 |
0.35 |
GN/BU |
6133 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
1 |
BK |
850 |
I |
- |
Ground 8 |
4 |
1 |
BK |
850 |
II |
- |
