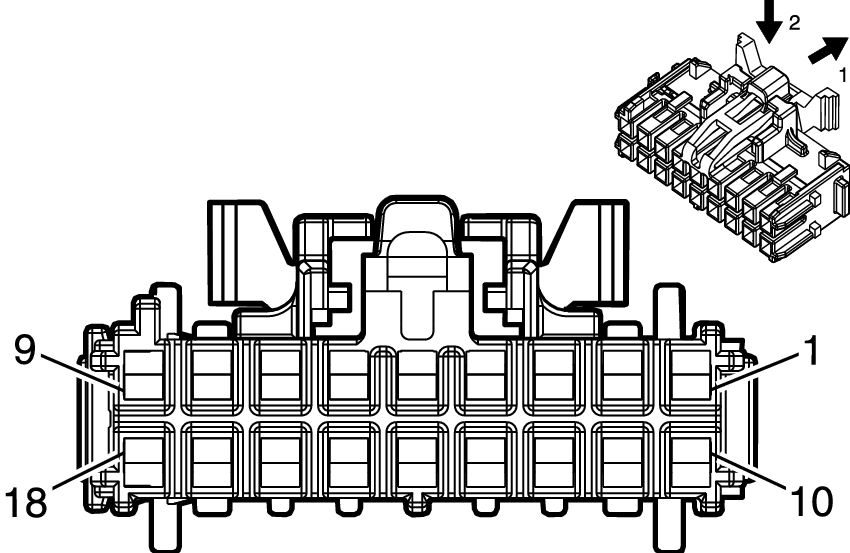

C5E Hybrid/EV Battery Module 5
|
|
Connector Part Information
- Harness Type: Auxiliary Battery Cable
- OEM Connector: 35014068
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F 1.2 Multilock Series (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE/BK |
4538 |
Hybrid/EV Battery Cell Voltage Signal 56 |
I |
- |
| 2 |
0.35 |
BU/WH |
4543 |
Hybrid/EV Battery Cell Voltage Signal 58 |
I |
- |
| 3 |
0.35 |
WH/BK |
4545 |
Hybrid/EV Battery Cell Voltage Signal 60 |
I |
- |
| 4 |
0.35 |
GY/GN |
4547 |
Hybrid/EV Battery Cell Voltage Signal 62 |
I |
- |
| 5 |
0.35 |
GY/BK |
4549 |
Hybrid/EV Battery Cell Voltage Signal 64 |
I |
- |
| 6 |
0.35 |
VT/GN |
4554 |
Hybrid/EV Battery Cell Voltage Signal 66 |
I |
- |
| 7 |
0.35 |
GY |
4556 |
Hybrid/EV Battery Cell Voltage Signal 68 |
I |
- |
| 8 |
0.35 |
VT/WH |
4558 |
Hybrid/EV Battery Cell Voltage Signal 70 |
I |
- |
| 9 |
0.35 |
VT |
4561 |
Hybrid/EV Battery Cell Voltage Signal 72 |
I |
- |
| 10 |
0.35 |
GY/BN |
4541 |
Hybrid/EV Battery Cell Voltage Signal 57 |
I |
- |
| 11 |
0.35 |
GY/BK |
4544 |
Hybrid/EV Battery Cell Voltage Signal 59 |
I |
- |
| 12 |
0.35 |
VT/WH |
4546 |
Hybrid/EV Battery Cell Voltage Signal 61 |
I |
- |
| 13 |
0.35 |
BU/BK |
4548 |
Hybrid/EV Battery Cell Voltage Signal 63 |
I |
- |
| 14 |
0.35 |
YE/WH |
4553 |
Hybrid/EV Battery Cell Voltage Signal 65 |
I |
- |
| 15 |
0.35 |
GN/BK |
4555 |
Hybrid/EV Battery Cell Voltage Signal 67 |
I |
- |
| 16 |
0.35 |
GY/WH |
4557 |
Hybrid/EV Battery Cell Voltage Signal 69 |
I |
- |
| 17 |
0.35 |
BK/VT |
4560 |
Hybrid/EV Battery Cell Voltage Signal 71 |
I |
- |
| 18 |
- |
- |
- |
Not Occupied |
- |
- |
