B342A UHF Low Energy Remote Control Access Sensor Transceiver 1
|
|

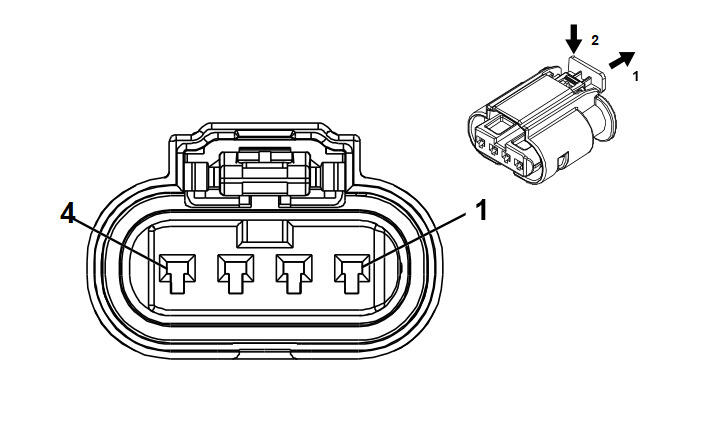

Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 34900-4125
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
2738 |
Virtual Key Module LIN Bus 1 |
I |
- |
| 2 |
0.5 |
RD/BN |
2940 |
Secondary Fused Battery Positive Voltage 29 |
I |
- |
| 3 |
0.5 |
BK |
1150 |
Ground 11 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
