X320 Heating Control Module Jumper Harness to Body Harness

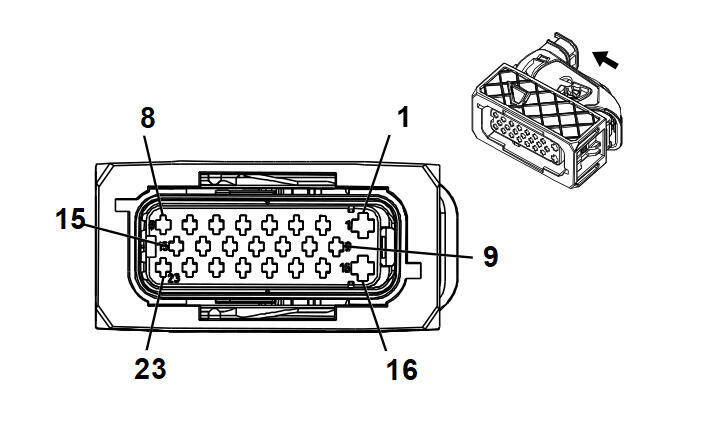

GM2906942Courtesy of GENERAL MOTORS COMPANY

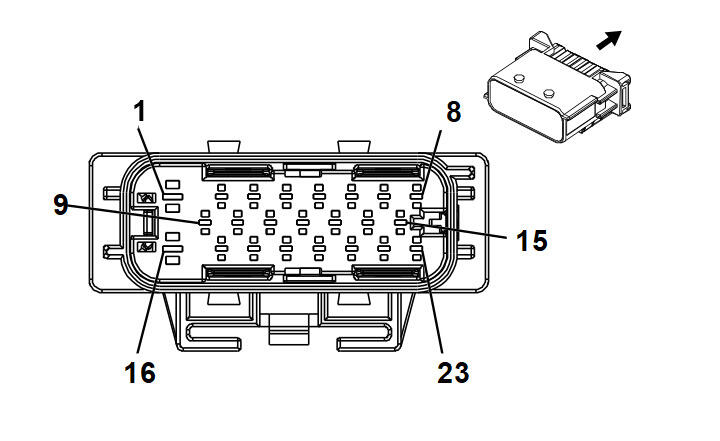

GM2906943Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Heating Control Module Jumper
  • OEM Connector: Not Available
  • Service Connector: Service by Harness
  • Description: 23-Way F
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13750010
  • Service Connector: 19332380
  • Description: 23-Way M 1.5 DSQ, 2.8 ATS Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) No Tool Required Not Required Not Required Not Required Not Required
II 13575233 J-35616-3 (GY) J-38125-215A Not Available Not Available Not Available Not Available
III 13575380 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
IV 13578882 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
V 13581368 J-35616-5 (PU) J-38125-215A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.75 RD/GY 1740 I - Secondary Fused Battery Positive Voltage 17 1 0.75 RD/GY 1740 V -
2 - - - - - Not Occupied 2 - - - - -
3 0.35 OG/VT 1362 I - Passenger Seat Belt Switch Signal 3 0.35 OG/VT 1362 IV -
4 0.5 BK/OG 1361 I - Passenger Seat Belt Switch Low Reference 4 0.5 BK/OG 1361 III -
5 0.5 BK/YE 2080 I - Driver Heated Seat Thermistor Low Reference 5 0.5 BK/YE 2080 III -
6 0.5 YE/GY 2079 I - Driver Seat Heating Temperature Sensor Signal 6 0.5 YE/GY 2079 III -
7 0.75 BN/VT 2077 I - Driver Seat Heating Element Control 7 0.75 BN/VT 2077 III -
8 0.5 BU 2425 I - Driver Seat Back Heating Temperature Sensor Signal 8 0.5 BU 2425 III -
9 0.35 GN/BU 6133 I - Body Control Module LIN Bus 2 9 0.35 GN/BU 6133 IV -
10 0.35 OG/GY 3066 I - Passenger Seat Side Air Bag High Control 10 0.35 OG/GY 3066 II -
11 0.35 BN/OG 3067 I - Passenger Seat Side Air Bag Low Control 11 0.35 BN/OG 3067 II -
12 - - - - - Not Occupied 12 - - - - -
13 0.5 GN 5060 I - Low Speed GMLAN Serial Data 13 0.5 GN 5060 III -
14 0.5 RD/GY 2240 I - Secondary Fused Battery Positive Voltage 22 14 0.5 RD/GY 2240 III -
15 0.5 BK 2050 I - Ground 20 15 0.5 BK 2050 III -
16 1 BK 2050 I - Ground 20 16 1 BK 2050 V -
17 - - - - - Not Occupied 17 - - - - -
18 0.35 OG/BN 3479 I - Passenger Seat Belt Anchor Pretensioner High Control 18 0.35 OG/BN 3479 II -
19 0.35 GY/OG 3480 I - Passenger Seat Belt Anchor Pretensioner Low Control 19 0.35 GY/OG 3480 II -
20 - - - - - Not Occupied 20 - - - - -
21 0.75 RD/BN 1742 I - Primary Fused Battery Positive Voltage 17 21 0.75 RD/BN 1742 III -
22 - - - - - Not Occupied 22 - - - - -
23 0.75 VT/BK 2424 I - Driver Seat Back Heating Element Low Reference 23 0.75 VT/BK 2424 III -
