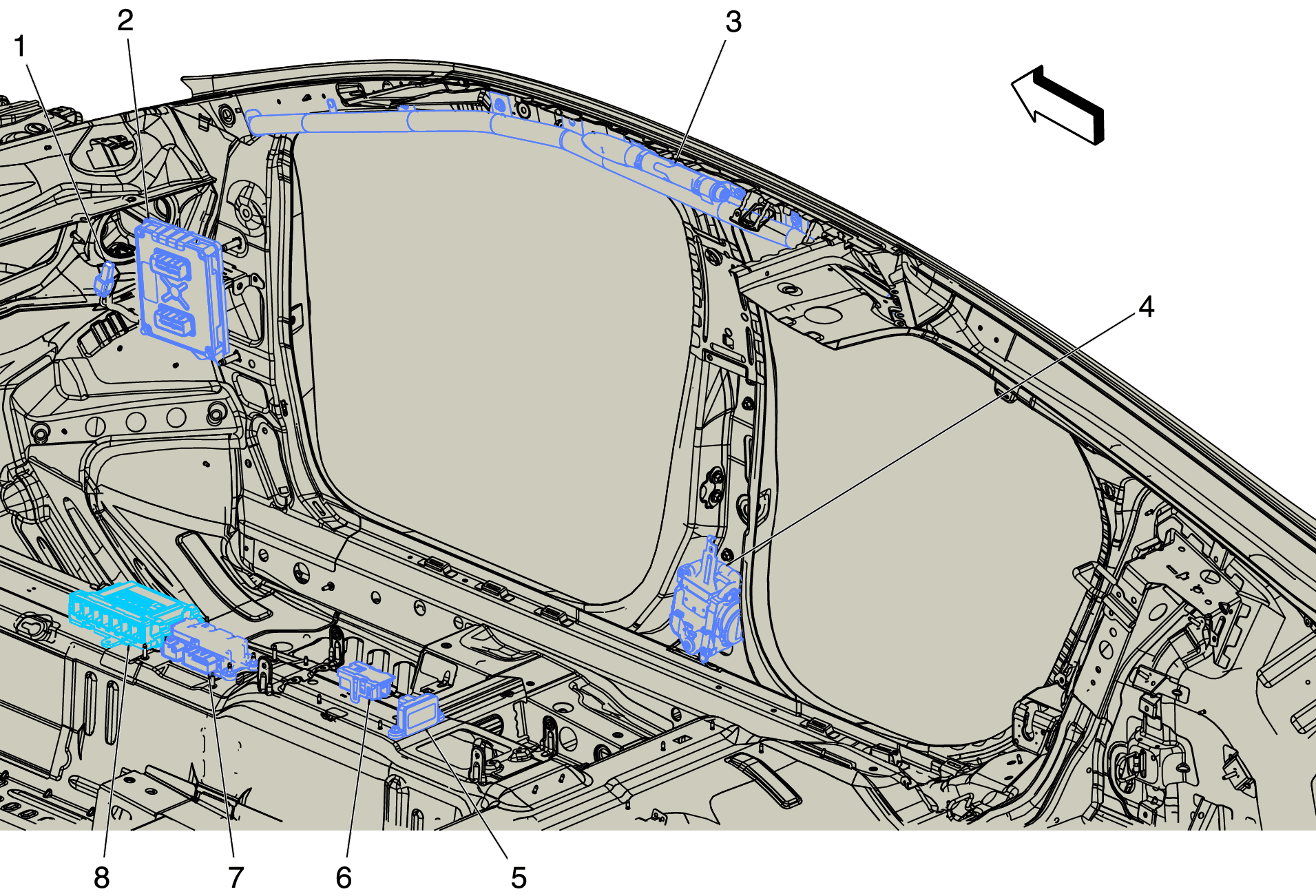

Passenger Compartment Components (3 of 3)

Courtesy of GENERAL MOTORS COMPANY

Passenger Compartment Components (3 of 3)

Items
1. R6G Terminating Resistor - High Voltage Energy Management Bus R6G Terminating Resistor - High Voltage Energy Management Bus
2. K114B Hybrid/EV Powertrain Control Module 2 K114B Hybrid/EV Powertrain Control Module 2 X1 , or K114B Hybrid/EV Powertrain Control Module 2 X2
3. F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
4. F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
5. B284 Vehicle Dynamic Sensor B284 Vehicle Dynamic Sensor
6. K183 UHF Short Range Low Energy Remote Control Access Transceiver K183 UHF Short Range Low Energy Remote Control Access Transceiver
7. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2
8. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7
