Rear of Vehicle Components (4 of 5)

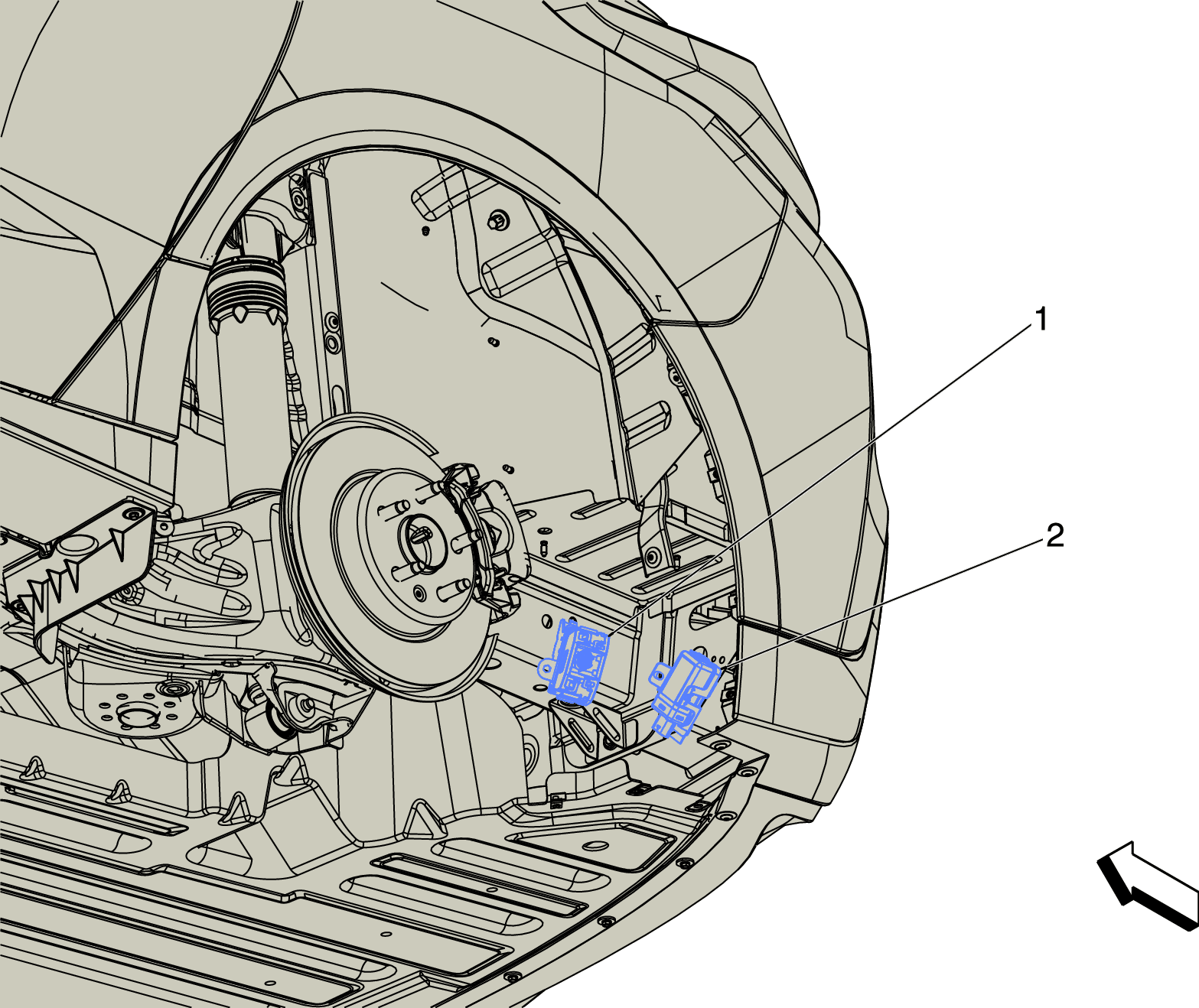

GM5148624Courtesy of GENERAL MOTORS COMPANY
Rear of Vehicle Components (4 of 5)

Items
1. P48R Pedestrian Alert Sound Speaker - Rear P48R Pedestrian Alert Sound Speaker - Rear
2. B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 B342C UHF Low Energy Remote Control Access Sensor Transceiver 3
