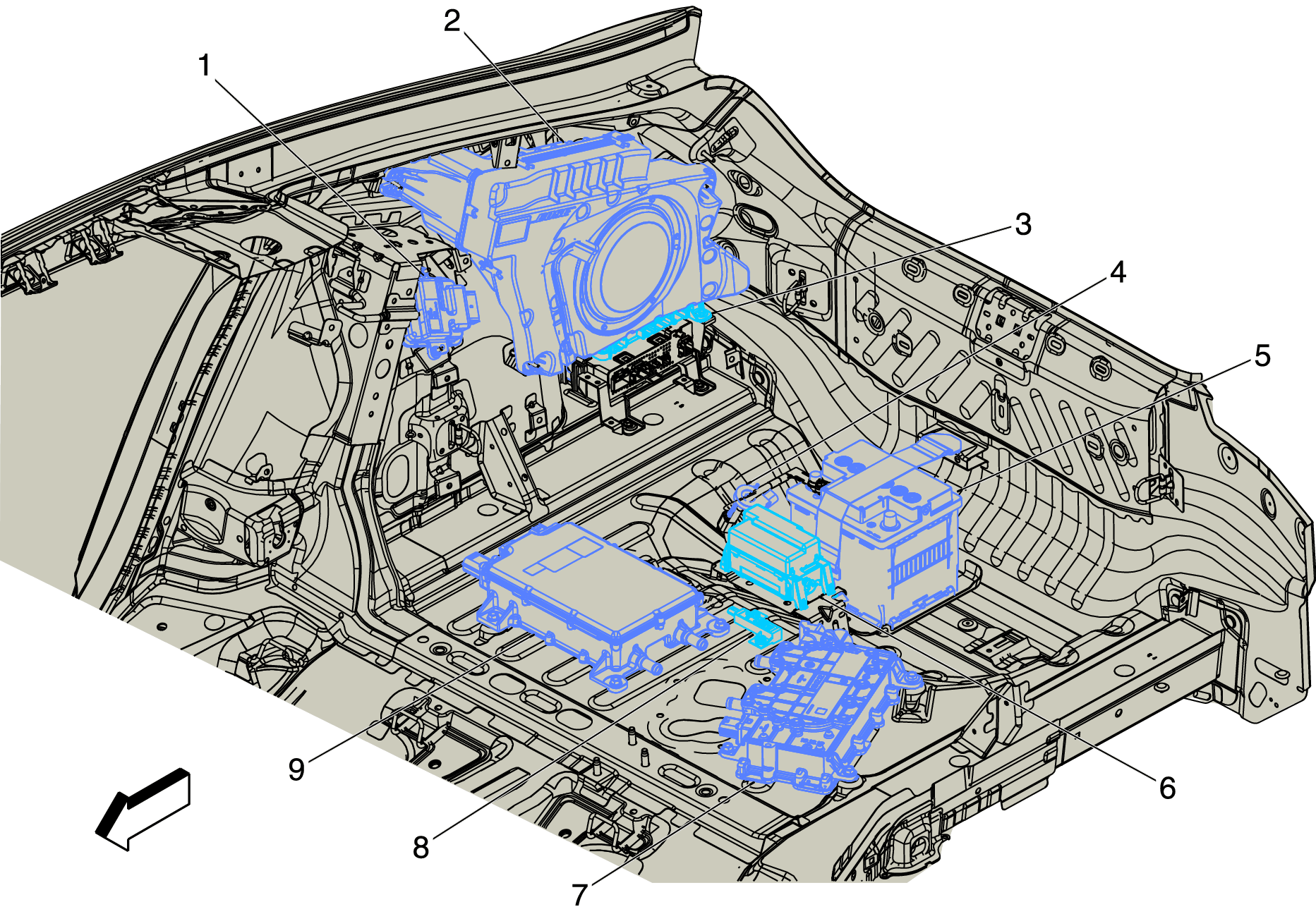

Luggage Compartment Components (1 of 2)
Luggage Compartment Components (1 of 2)
| Items |
|---|
| 1. K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module |
| 2. P19AC Speaker - Subwoofer P19AC Speaker - Subwoofer |
| 3. T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 , or T3 Audio Amplifier X2 , or T3 Audio Amplifier X3 , or T3 Audio Amplifier X4 |
| 4. B18 Battery Current Sensor B18 Battery Current Sensor |
| 5. C1 Battery C1 Battery |
| 6. X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body |
| 7. K1 14V Power Module K1 14V Power Module X1 , or K1 14V Power Module X2 , or K1 14V Power Module X3 , or K1 14V Power Module X4 |
| 8. T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment |
| 9. T18 Battery Charger T18 Battery Charger X1 , or T18 Battery Charger X2 (K23) , or T18 Battery Charger X3 (K23) |
