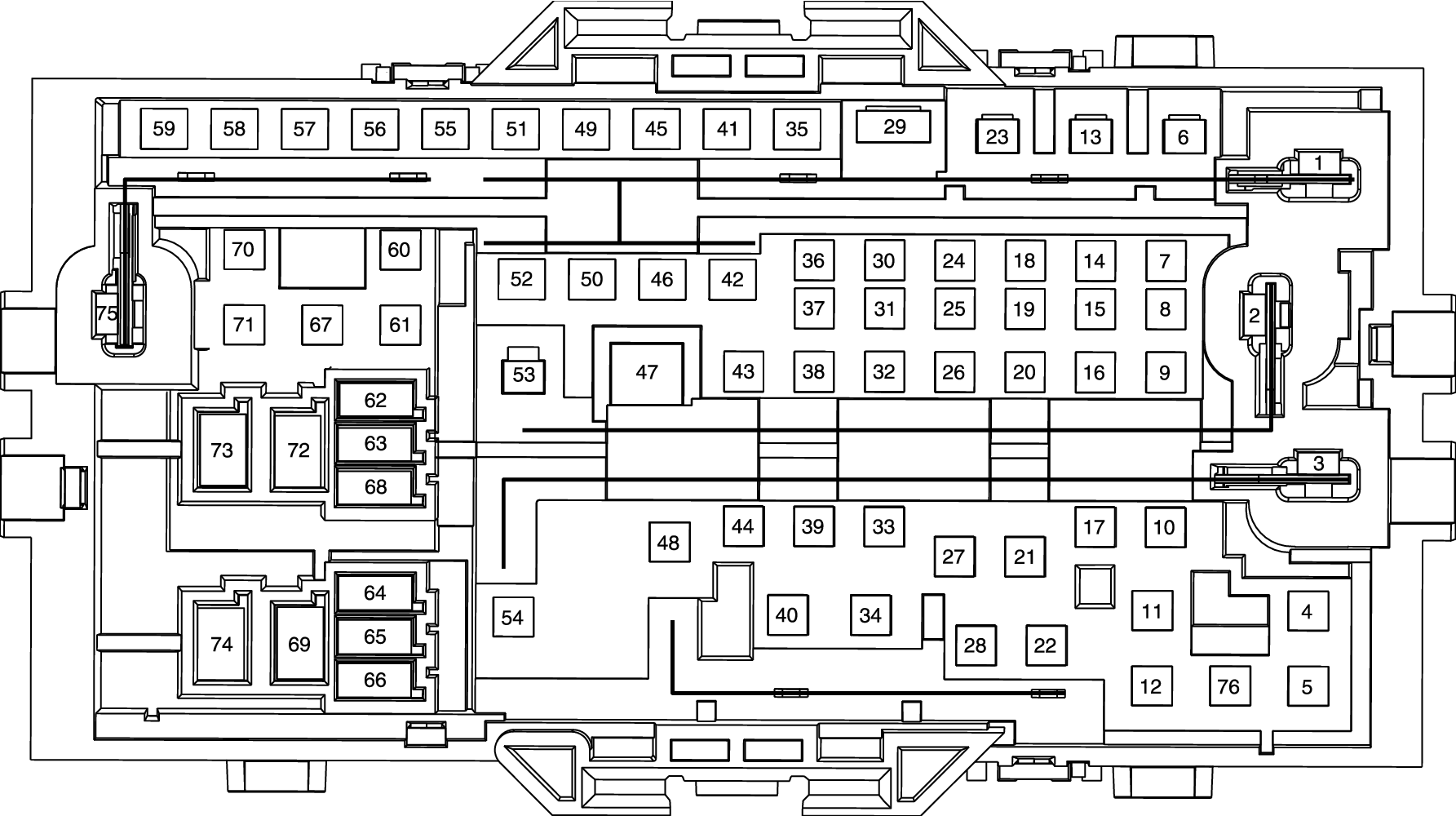

X51A Fuse Block - Instrument Panel
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13580023 | J-35616-43 (RD) | J-38125-11A | Not Required | Not Required | Not Required | Not Required |
| II | 19300649 | J-35616-16 (LT GN) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| III | 19301752 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| IV | 19301759 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| V | 19301761 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| VI | Not Required | J-35616-42 (RD) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
Terminal Part Information
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 8 | RD/BU | 42 | Battery Positive Voltage | VI | - |
| 2 | 8 | RD/GY | 142 | Battery Positive Voltage | VI | - |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | - | - | - | Not Occupied | - | - |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 1 | RD/BN | 4240 | Battery Positive Voltage | V | - |
| 10 | 0. 5 | RD/GN | 2440 | Battery Positive Voltage | II | - |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | - | - | - | Not Occupied | - | - |
| 13 | - | - | - | Not Occupied | - | - |
| 14 | - | - | - | Not Occupied | - | - |
| 15 | - | - | - | Not Occupied | - | - |
| 16 | 1. 5 | RD/YE | 4340 | Battery Positive Voltage | III | - |
| 17 | 0. 5 | RD/VT | 340 | Battery Positive Voltage | V | - |
| 18 | - | - | - | Not Occupied | - | - |
| 19 | - | - | - | Not Occupied | - | - |
| 20 | 1 | RD/GN | 4140 | Battery Positive Voltage | V | - |
| 21 | 0. 5 | RD/WH | 5440 | Battery Positive Voltage | II | - |
| 22 | 0. 35 | VT | 4601 | Retained Accessory Power Fused Control | II | - |
| 23 | - | - | - | Not Occupied | - | - |
| 24 | - | - | - | Not Occupied | - | - |
| 25 | - | - | - | Not Occupied | - | - |
| 26 | 0. 5 | RD/VT | 2640 | Battery Positive Voltage | II | - |
| 27 | 1 | RD/BN | 4940 | Battery Positive Voltage | V | - |
| 28 | - | - | - | Not Occupied | - | - |
| 29 | 4 | RD/VT | 542 | Battery Positive Voltage | I | - |
| 30 | - | - | - | Not Occupied | - | - |
| 31 | - | - | - | Not Occupied | - | - |
| 32 | 0. 35 0. 5 |
RD/BK RD/BK |
2240 2240 |
Battery Positive Voltage Battery Positive Voltage |
IV V |
- -AL0}INVALID |
| 33 | 0. 35 0. 5 |
RD/WH RD/WH |
3440 3440 |
Battery Positive Voltage Battery Positive Voltage |
IV V |
- - |
| 34 | 1 | VT | 1301 | Retained Accessory Power Fuse Control | V | - |
| 35 | 1 | RD/BU | 4540 | Battery Positive Voltage | V | - |
| 36 | - | - | - | Not Occupied | - | - |
| 37 | - | - | - | Not Occupied | - | - |
| 38 | 0. 5 0. 5 |
RD/BU RD/BU |
3240 3240 |
Battery Positive Voltage Battery Positive Voltage |
II V |
- - |
| 39 | 0. 5 | RD/WH | 640 | Battery Positive Voltage | II | - |
| 40 | 1 | VT/WH | 1701 | Retained Accessory Power Ignition | V | - |
| 41 | - | - | - | Not Occupied | - | - |
| 42 | - | - | - | Not Occupied | - | - |
| 43 | 0. 35 | RD/YE | 5040 | Battery Positive Voltage | II | - |
| 44 | 0. 5 | RD/BU | 5240 | Battery Positive Voltage | II | - |
| 45 | 0. 35 | RD/GY | 3540 | Battery Positive Voltage | II | - |
| 46 | 0. 5 | RD/GY | 1740 | Battery Positive Voltage | II | - |
| 47 | - | - | - | Not Occupied | - | - |
| 48 | 0. 35 | GY/GN | 4083 | RAP Relay 2 Coil Control | II | - |
| 49 | 1. 5 | RD/GN | 4440 | Battery Positive Voltage | III | - |
| 50 | 1 | RD/GY | 4840 | Battery Positive Voltage | V | - |
| 51 | 2 | RD/GN | 1540 | Battery Positive Voltage | III | - |
| 52 | 0. 5 | RD/GN | 502 | Battery Positive Voltage | II | - |
| 53 | - | - | - | Not Occupied | - | - |
| 54 | 0. 5 | BK | 2150 | Ground | II | - |
| 55 | - | - | - | Not Occupied | - | - |
| 56 | - | - | - | Not Occupied | - | - |
| 57 | - | - | - | Not Occupied | - | - |
| 58 | - | - | - | Not Occupied | - | - |
| 59 | - | - | - | Not Occupied | - | - |
| 60 | 0. 5 | BK | 2150 | Ground | II | - |
| 61 | 0. 5 | RD/BU | 5240 | Battery Positive Voltage | II | - |
| 62 | - | - | - | Not Occupied | - | - |
| 63 | - | - | - | Not Occupied | - | - |
| 64 | - | - | - | Not Occupied | - | - |
| 65 | - | - | - | Not Occupied | - | - |
| 66 | - | - | - | Not Occupied | - | - |
| 67 | 0. 5 | BK | 2150 | Ground | V | - |
| 68 | - | - | - | Not Occupied | - | - |
| 69 | - | - | - | Not Occupied | - | - |
| 70 | 0. 5 | BU/YE | 6795 | Lift Glass/Rear Compartment Lid Motor Release Control 2 | II | - |
| 71 | 0. 35 | YE | 5704 | Endgate Latch Relay Coil Control | II | - |
| 72 | - | - | - | Not Occupied | - | - |
| 73 | - | - | - | Not Occupied | - | - |
| 74 | - | - | - | Not Occupied | - | - |
| 75 | - | - | - | Not Occupied | - | - |
