Hood Rear Weatherstrip Replacement
Hood Rear Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

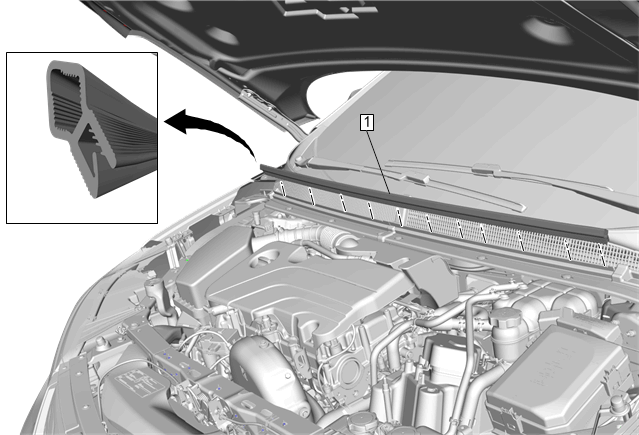

Callout
Component Name
1
Hood Rear Weatherstrip
Procedure
Slide the hood rear weatherstrip out from under the air inlet grille panel extension and pull the rear weatherstrip up from the air inlet grille.
