Hood Insulator Replacement
Hood Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

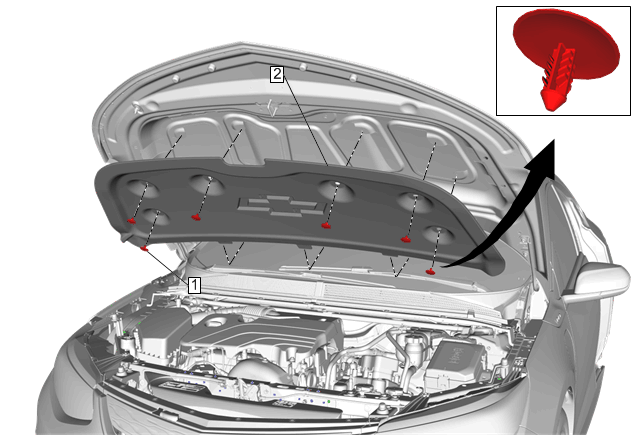

Callout
Component Name
1
Hood Insulator Retainer [6x]
2
Hood Insulator
Procedure
Ensure the three lower integral tabs are secure to the hood.
