Rear Side Door Replacement

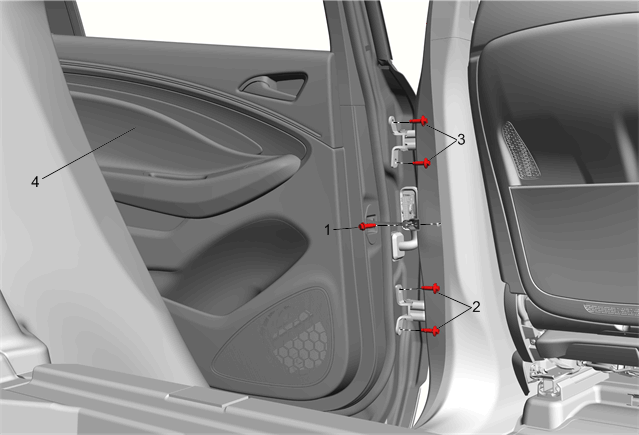

GM3796140Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Apply masking tape to the fender and door edges.
  2. Disconnect the electrical connector.
  3. Support the door before removing the hinge bolts.
1 Rear Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Rear Side Door Upper Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
3 Rear Side Door Lower Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
4 Rear Side Door

Procedure

  1. With the aid of an assistant, remove the door.
  2. When replacing the door it is necessary to transfer all of the internal components.
  3. Rear Side Door Adjustment
