Liftgate Strut Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

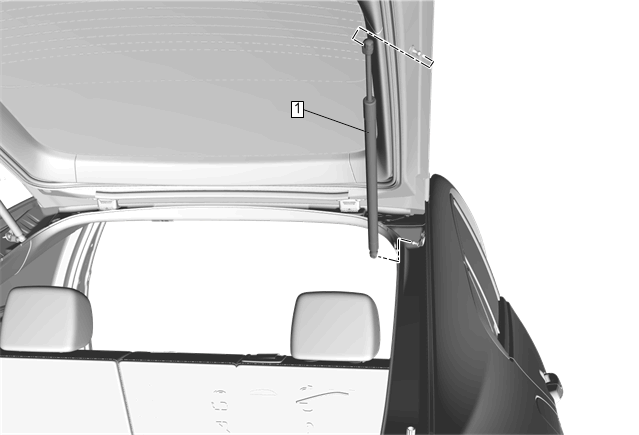

1	Liftgate Strut Procedure Release the lock tabs on the strut Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

Callout

Component Name

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Liftgate Strut

Procedure

Release the lock tabs on the strut
Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.
