Liftgate Strut Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

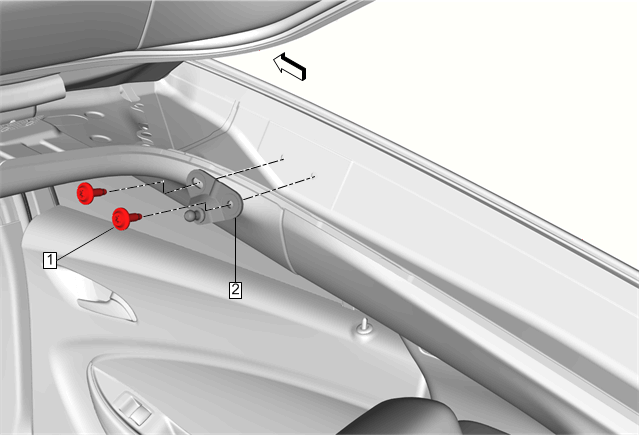

Callout	Component Name
Preliminary Procedures Open the liftgate. Liftgate Strut Replacement .
1	Liftgate Strut Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Liftgate Strut Bracket

Callout

Component Name

Preliminary Procedures

Liftgate Strut Bracket Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Liftgate Strut Bracket
