Hood Primary Latch Release Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

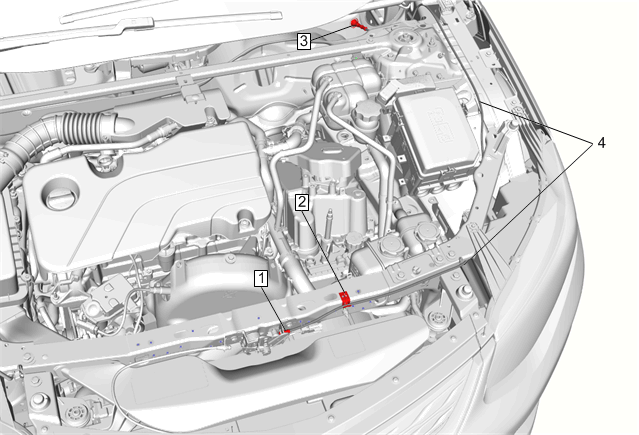

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement Hood Primary and Secondary Latch Replacement NOTE: It is only necessary the reposition the hood primary and secondary latch enough the gain access to the part.
1	Hood Primary Latch Release Cable at Latch Procedure Disconnect the release cable from the hood primary latch.
2	Hood Primary Latch Release Cable Retainer Procedure Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Remove the hood primary latch release cable handle by pressing the release cable handle upward to release the retainers from the instrument panel bracket. Attach mechanics wire to the cable and pull the cable out. Attach mechanics wire to the new cable and guide in.
