Rear Body Structure Stop Lamp Replacement

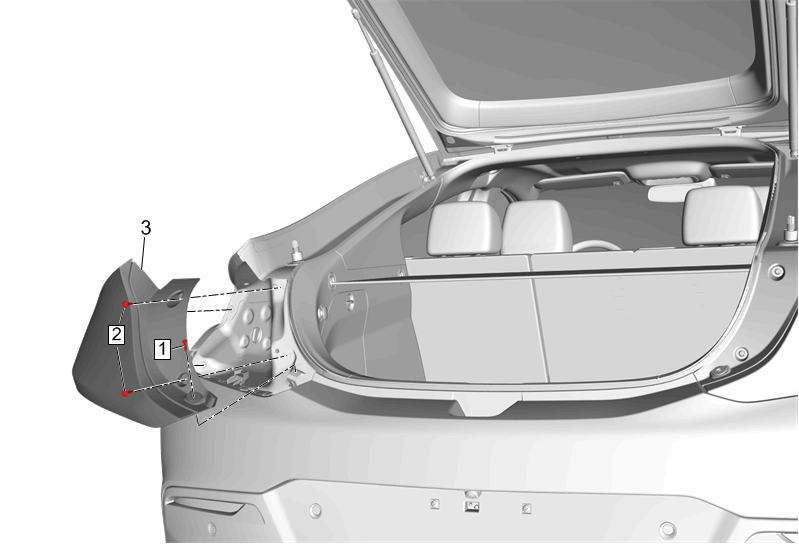

GM4090777Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Liftgate Bumper Pad Screw
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Body Structure Stop Lamp Screw [2x]
Tighten
2.5 N.m (22 lb in)
3 Rear Body Structure Stop Lamp

Procedure

  1. Grasp the stop lamp and give a quick pull rearward in order to disengage the 2 outer stop lamp locator pins and retainer from the stop lamp pocket.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
