K73 Telematics Communication Interface Control Module X5 (UE1)
 Courtesy of GENERAL MOTORS COMPANY
|

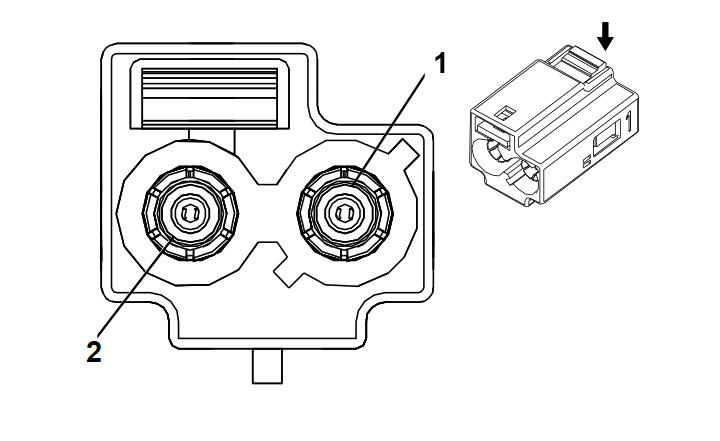

Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 3FAH-NCSJ-C04W6
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
(Cell only) Coaxial Antenna Cell Phone Signal |
I |
- |
