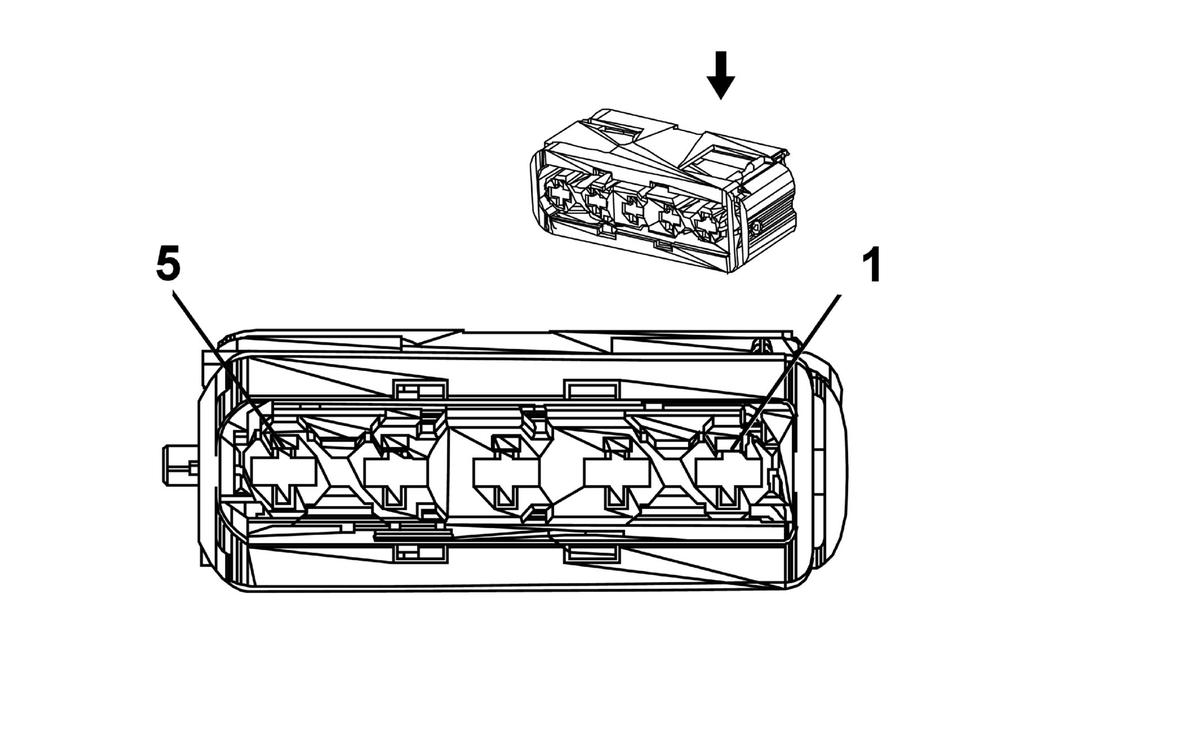

E40 Electrical Auxiliary Heater (C32)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: HVAC OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 5-Way F 6.35 NG1 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	4	RD	6553	PTC Heater Control	I	-
2	0.35 4	BN/GN BK	2550 2550	Ground 25 Ground 25	I	- -
3	4	GN	6548	PTC Heater Control	I	-
4	4	BK	2550	Ground 25	I	-
5	4	RD	6553	PTC Heater Control	I	-
