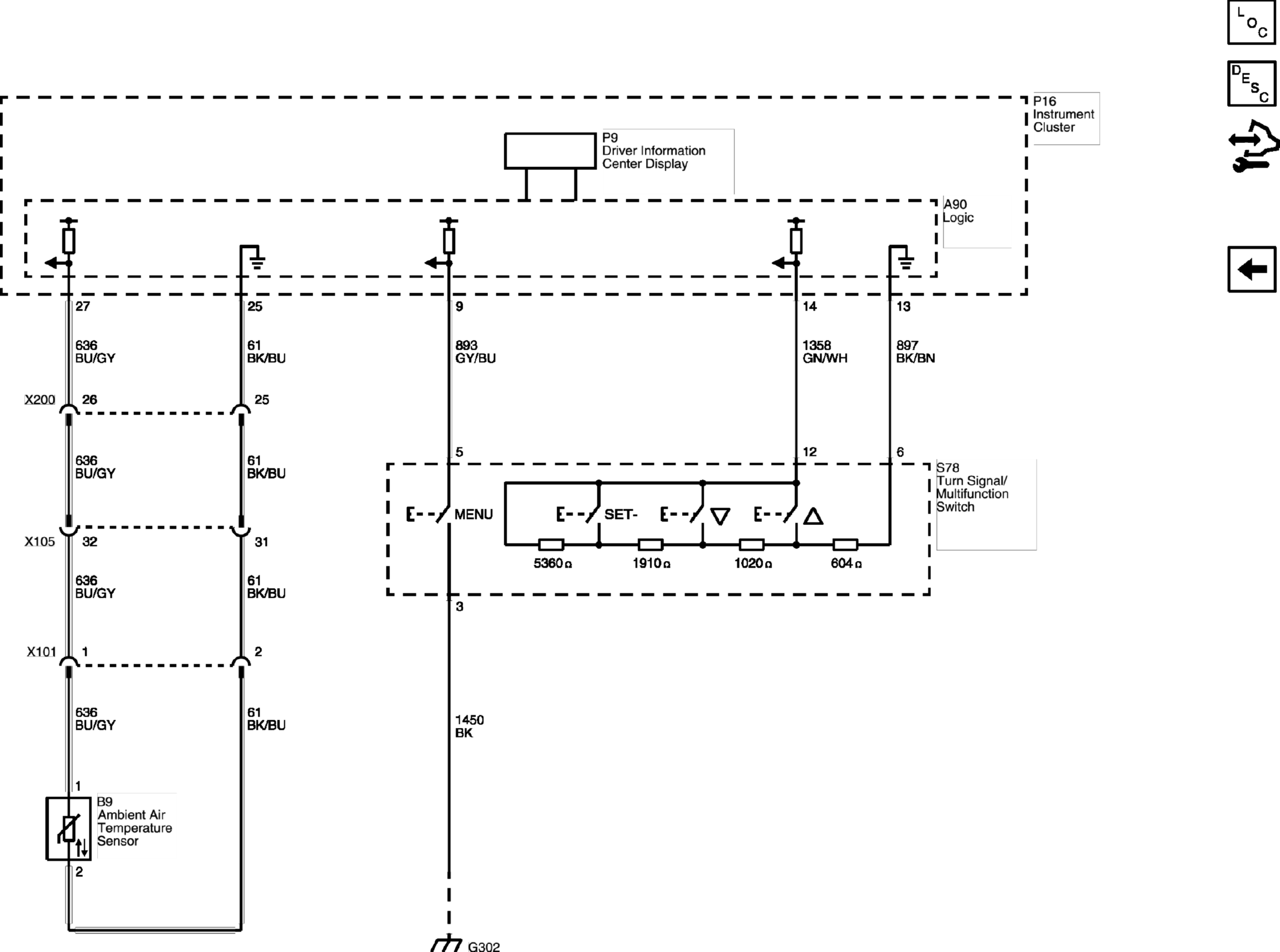

Air Temperature, Turn Signal, and Driver Information Center (Trax)

GM4918905

Courtesy of GENERAL MOTORS COMPANY
