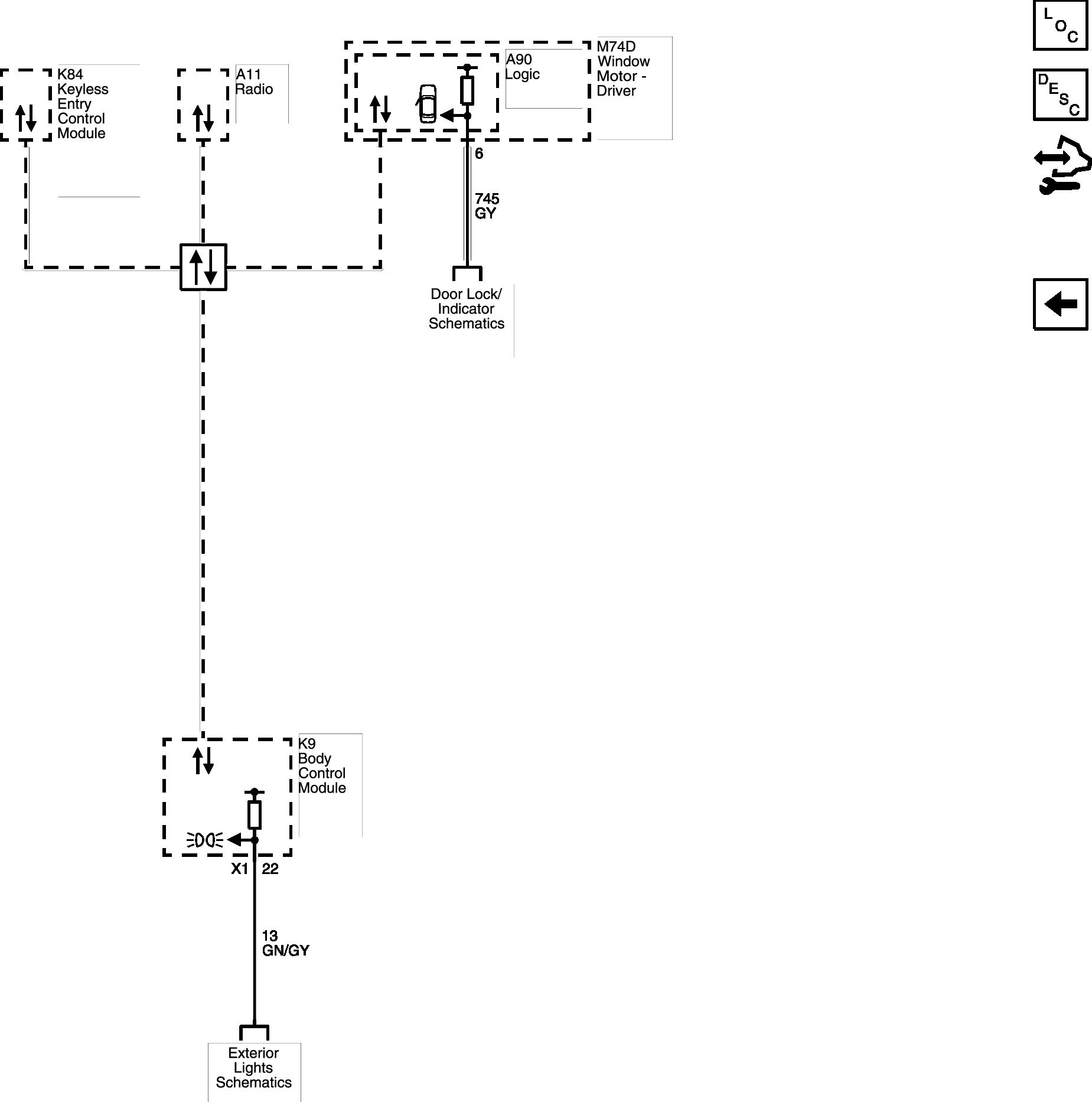

Home >> Chevrolet >> 2019 >> Trax LS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Audible Warnings Wiring Schematics (Trax) >> Audible Warnings (Trax with BTM)
