Air Distributor Front Duct Replacement

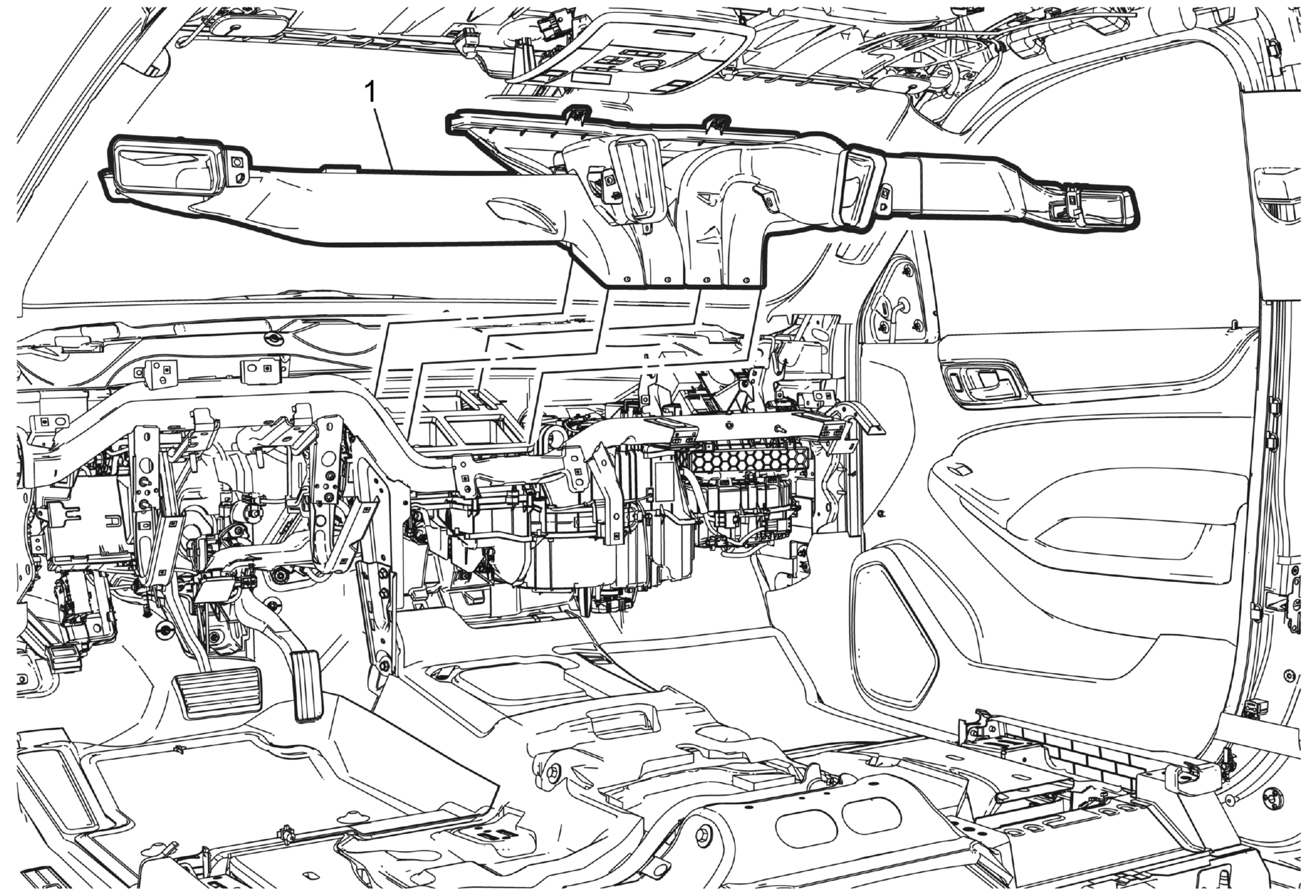

GM3635037Courtesy of GENERAL MOTORS COMPANY
Call out Component Name

Preliminary Procedures

  1. Remove the left side window defogger outlet duct. Refer to Side Window Defogger Outlet Outer Duct Replacement - Left Side (W/O HUD UV6) Side Window Defogger Outlet Outer Duct Replacement - Left Side (UV6 HUD) .
  2. Remove the right side window defogger outlet duct. Refer to Side Window Defogger Outlet Outer Duct Replacement - Right Side .
1 Air Distributor Front Duct

Procedures

  1. Note the location and routing of the instrument panel wiring harness in order to ensure proper re-installation of the harness.
  2. To remove air distributor front duct, disconnect and reposition the instrument panel wiring harness out of the way.
