Special Tools
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
| Illustration | Tool Number/Description |
|---|---|
| 3-9607433 Transmission Support |
|
| DT-586 J-23129 KM-586 Universal Seal Remover |
|
| DT-3289-20 J-3289-20 Holding Fixture |
|
| DT-7004 J-6125-1B KM-J-7004 Slide Hammer with Adapter |
|
| DT-8059 J-8059 KM-396 Snap Ring Pliers-Parallel Jaw |
|
| DT-8092 J-8092 KM-J-8092 DW340-010 Driver Handle |
|
| DT-21366 J-21366 Converter Holding Strap |
|
| DT-28585 J-28585 KM-J-28585 Snap Ring Remover |
|
| J-29162 Seal Installer |
|
| DT-39890 J-39890 Transmission Holding Fixture Adapter |
|
| DT-41229 J-41229 Manual Shaft Pin Installer |
|
| DT-45096 J-45096 Transmission Oil Cooling System Flush and Flow Test Tool |
|
| DT-45096-50 J-45096-50 Transmission Oil Cooler Flush Adapter |
|
| DT-45201 J-45201 DT-48203 Cooler Line Seal Remover |
|
| DT-46409 J-46409 KM-922 Torque Converter Lifting Handles |
|
| DT-46620 J-46620 Seal Installer |
|
| DT-46625 J-46625 Holding Fixture |
|
| DT-46625-10 J-46625-10 Holding Fixture Adapter |
|
| DT-47694 Spring Compressor |
|
| DT-47790 Seal Installer |
|
| DT-47791-A Seal Installer |
|
| DT-47792 Seal Installer |
|
| DT-47793 Differential Rotating Tool |
|
| DT-47794 Spring Compressor |
|
| DT-47796 Seal Protector |
|
| DT-47797 Spring Installer |
|
| DT-47798 Seal Protector |
|
| DT-47799 Clutch Piston Spring Compressor |
|
| DT-47805 Seal Protector |
|
| DT-47807 Clutch Piston Seal Installer |
|
| DT-47811-S1 Lift Plate |
|
| DT-47951-1 Seal Protector |
|
| DT-47951-2 Spring Compressor |
|
| DT-48056 Spring Compressor Bridge |
|
| DT-48270 Spring Installer |
|
| DT-48271 Seal Protector |
|
| DT-48272 Spring Installer |
|
| DT-48273 Seal Protector |
|
| DT-48274 Spring Compressor |
|
| DT-48277 Differential Rotating Tool |
|
| DT-48550 Detent Lever Pin Remover |
|
| DT-48616 Control Solenoid Test Plate |
|
| DT-48616-10 Adapter Harness |
|
| DT-48866 Spring Compressor |
|
| DT-48903 Spring Compressor |
|
| DT-49101 Seal Installer |
|
| DT-49131 Seal Staking Tool |
|
| DT-50369 Seal Protector |
|
| EL-35616 J 35616 Terminal Test Probe Kit |
|
| EL-38522 J-38522 Variable Signal Generator |
|
| EN-21867 GE 21867 J-21867 Pressure Gauge |
|
| EN-45059 J-45059 Angle Meter |
|
| EN-680770 M-680770 Universal Sliding Malet |
|

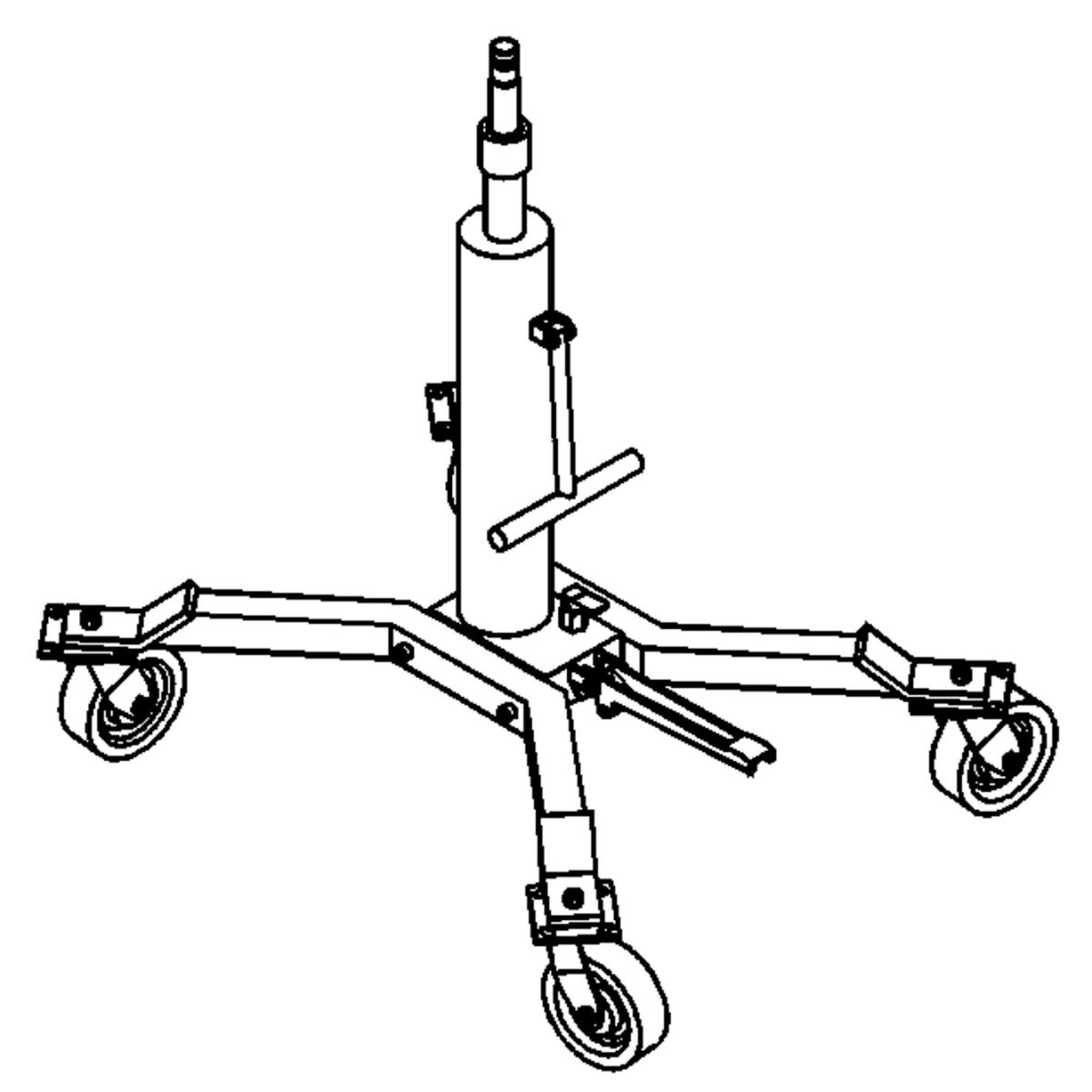

| EN-9703392 J-9703392 Hydraulic Jack |
|
| GE-5586-A J-5586-A Snap Ring Pliers |
|
| GE-21867-A J-21867-A Oil Pressure Gauge Kit |
|
| GE-34673 J-34673 Flat Gauge Bar |
