Instrument Panel Upper Trim Panel Replacement - Right Side (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

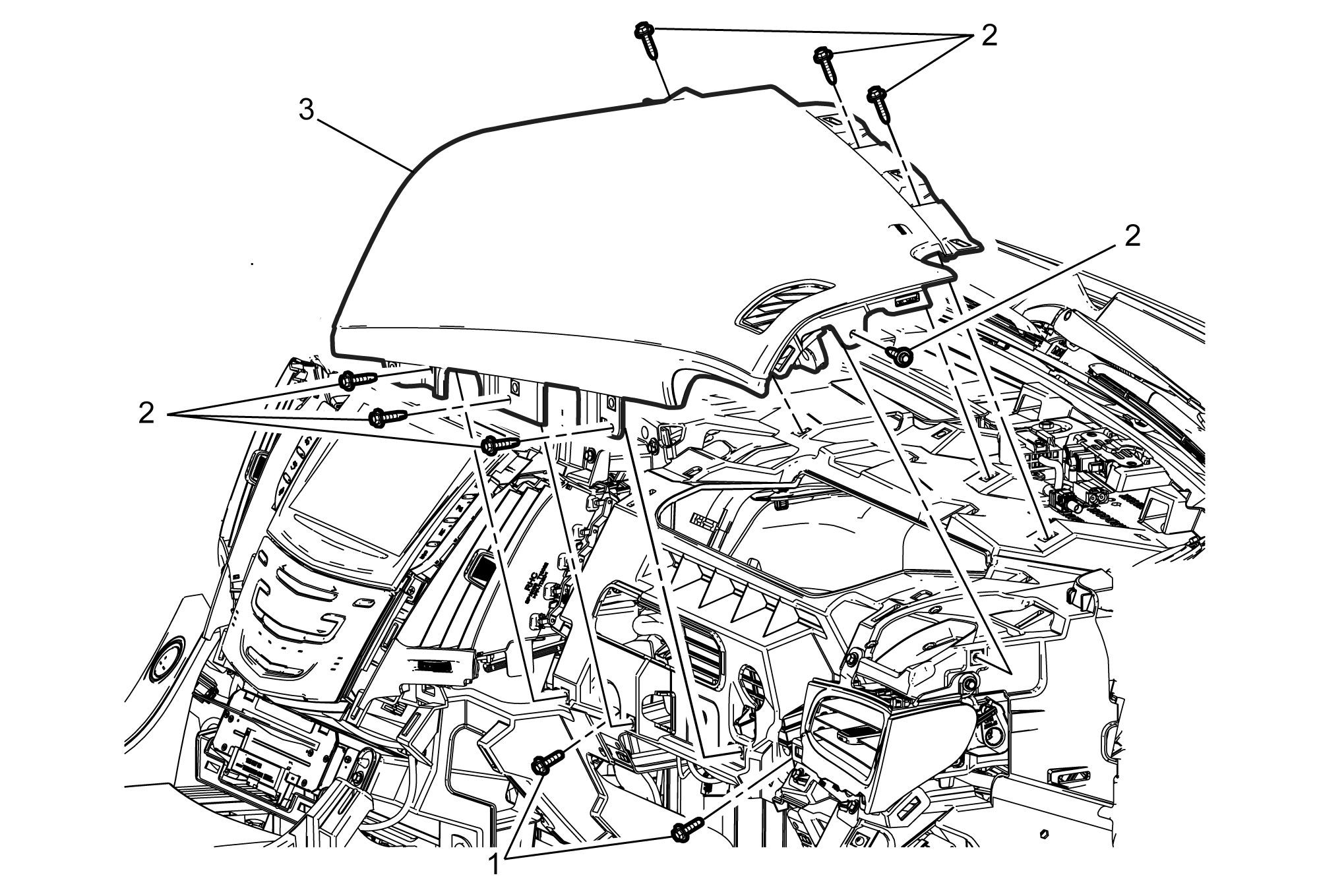

Callout	Component Name
Preliminary Procedures Disable the SIR System. Refer to SIR Disabling and Enabling . Remove the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement (Cadillac) . Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement (Cadillac)
1	Instrument Panel Inflatable Restraint Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Instrument Panel Upper Bolt (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Instrument Panel Upper Trim Panel Procedures Use a flat bladed plastic trim tool in order to release the retainer clips securing the panel to the instrument panel carrier. Disconnect the electrical connector. Transfer components as necessary.
