Instrument Panel Compartment Door Latch Actuator Replacement (Cadillac)

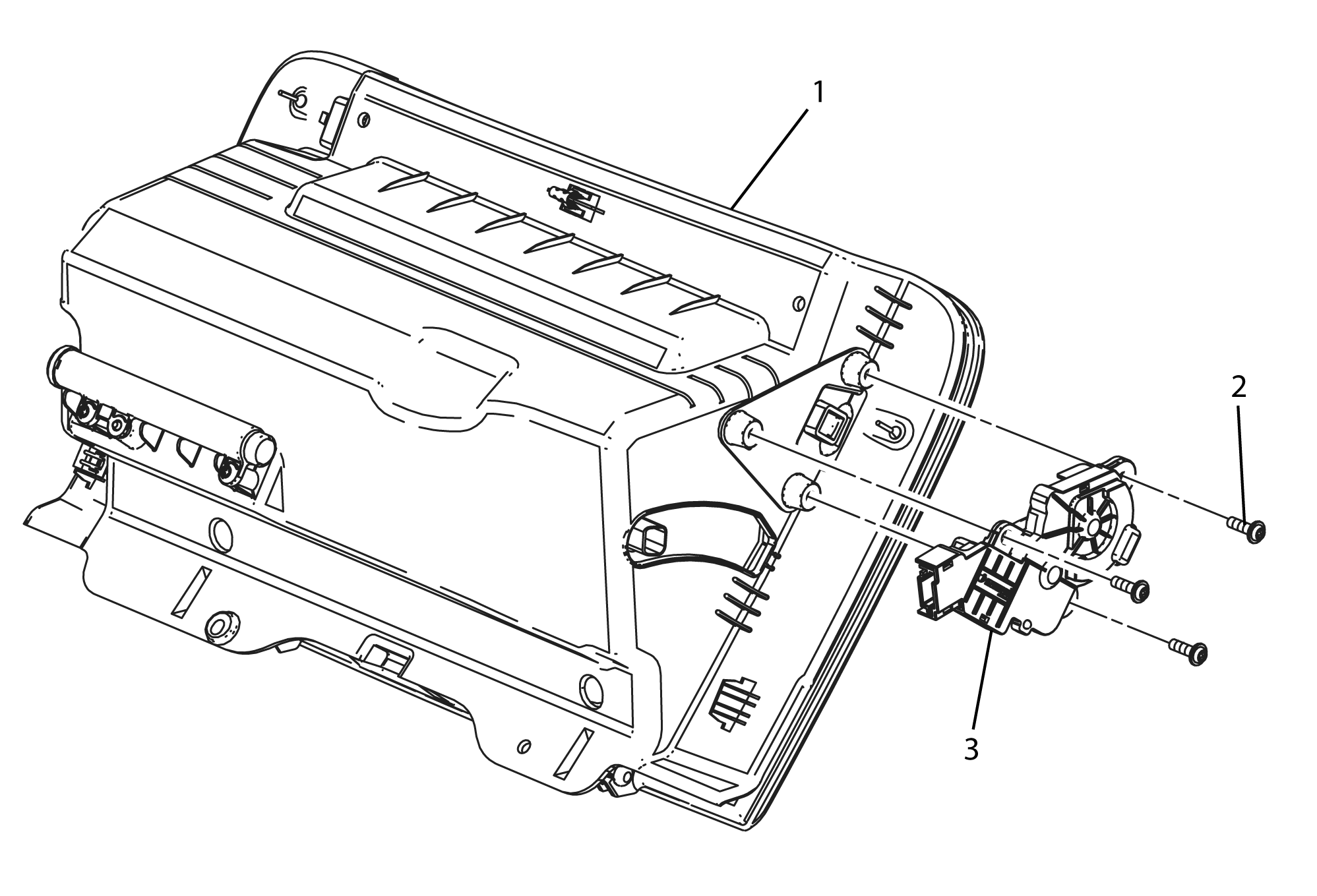

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Compartment Refer to Instrument Panel Compartment Replacement (Cadillac) . |
| 2 | Instrument Panel Compartment Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Instrument Panel Compartment Door Latch Actuator |
