Front Wheelhouse Liner Replacement - Right Side (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

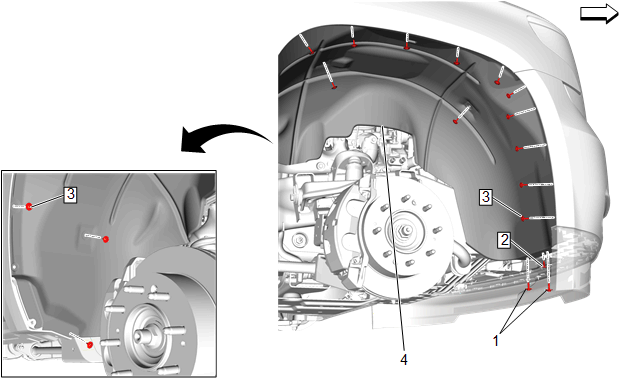

Callout	Component Name
Preliminary Procedures Remove the tire and wheel assembly. Tire and Wheel Removal and Installation (6-Lug Wheel)Tire and Wheel Removal and Installation (8-Lug Wheel) . Remove the front wheel opening rear molding, Front Wheel Opening Rear Molding Replacement
1	Front Wheelhouse Liner Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Front Wheelhouse Liner Plastic Retainer
3	Front Wheelhouse Liner Fasteners [15x] Tighten 2.5 N.m (22 lb in)
4	Front Wheelhouse Liner - Right NOTE: Disconnect any electrical harnesses/connectors and attached parts from the right side front wheelhouse liner as needed.
