Front Bumper Shutter Replacement (Mechanical)

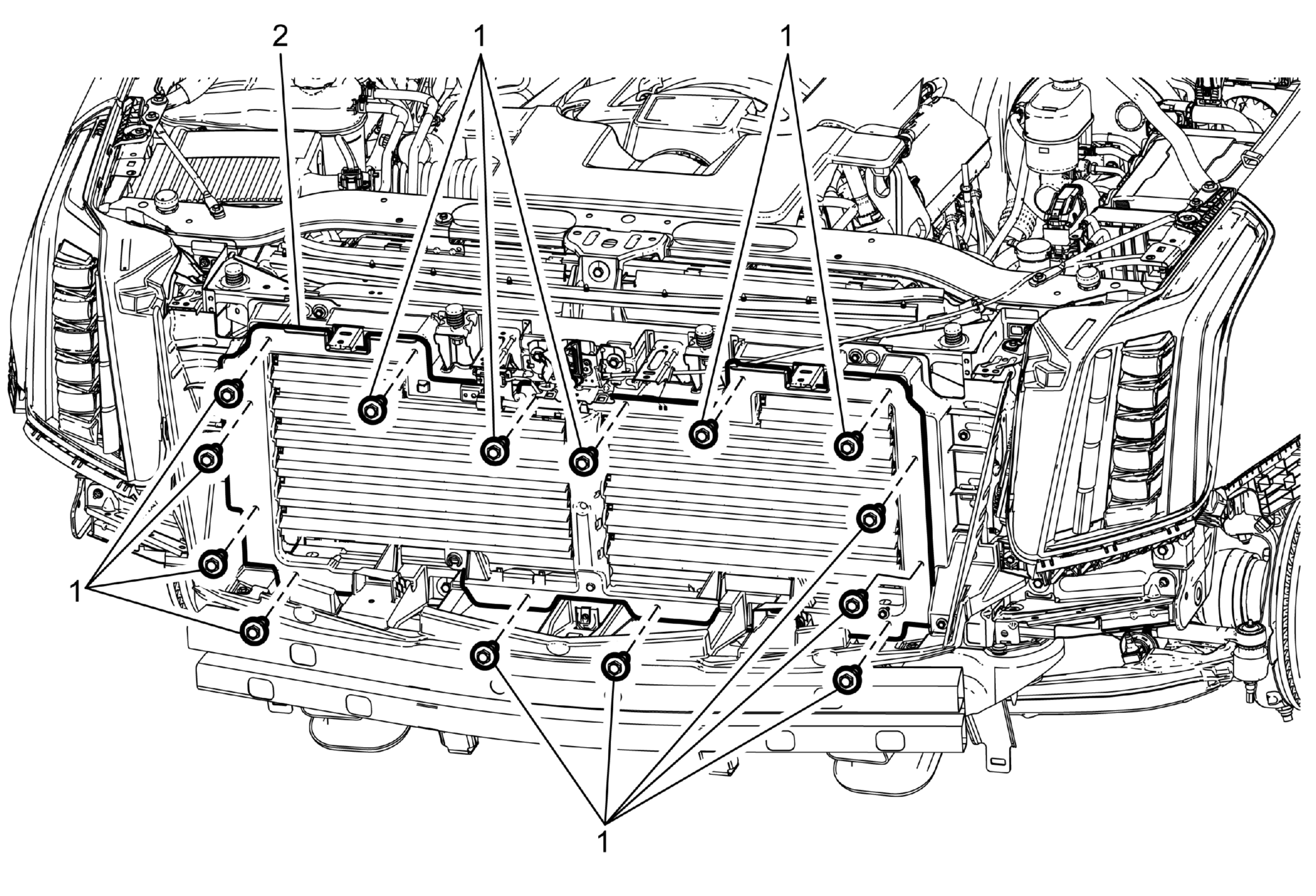

GM3618321Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC) Front Bumper Fascia Replacement (Chevrolet) Front Bumper Fascia Replacement (Cadillac) .
  2. Headlamp and front end panel mount panel brace. Refer to Headlamp and Front End Panel Mount Panel Brace Replacement (Cadillac)
1 Front Bumper Shutter Bolts (Qty: 14)
CAUTION:

Refer to Fastener Caution .


Tighten:
6 N.m (53 lb in)
2 Front Bumper Shutter

Procedure

  1. Disconnect the electrical connector.
  2. Unclip the wiring harness.
