Radio Front Center Speaker Replacement (GMC)

Courtesy of GENERAL MOTORS COMPANY

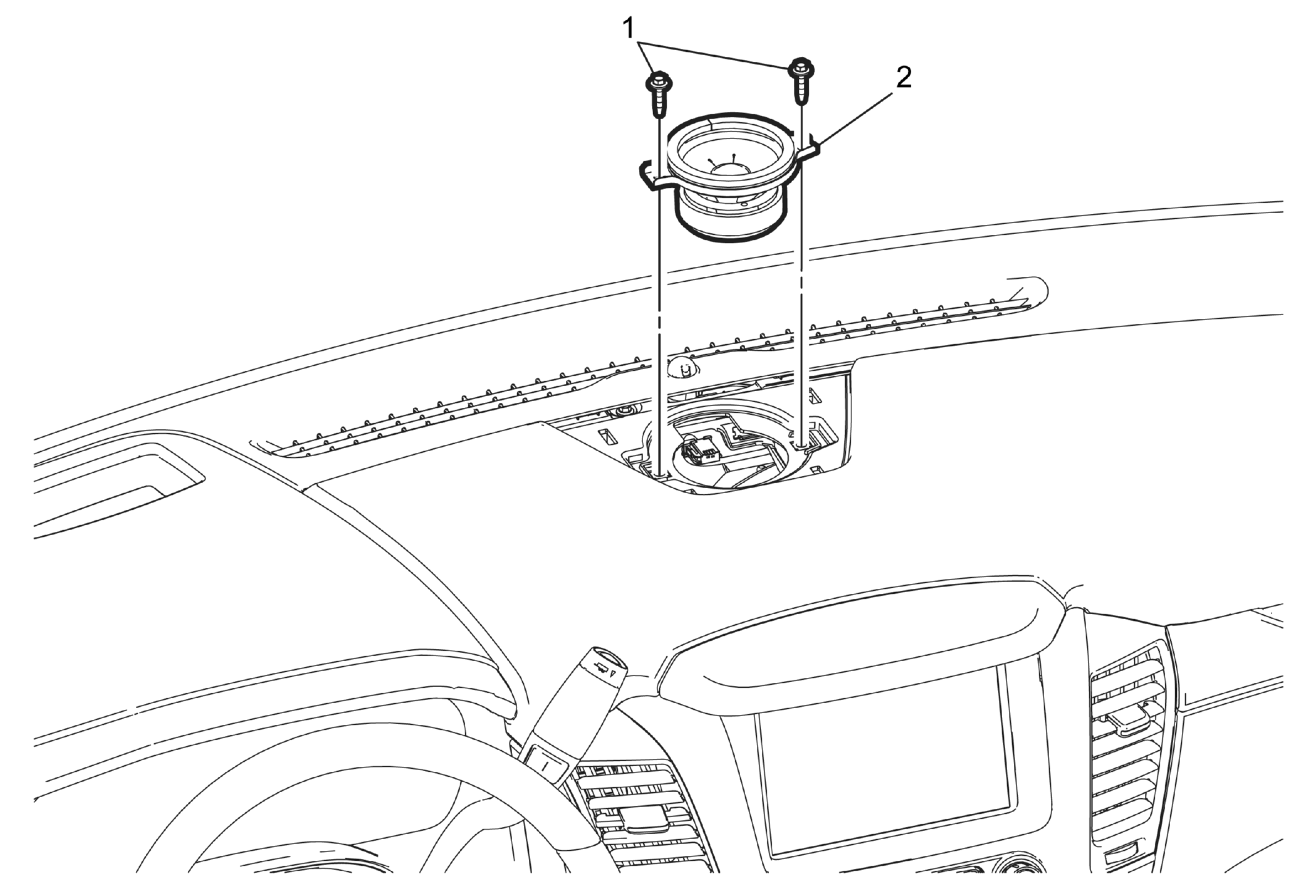

Callout	Component Name
Preliminary Procedure  Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement (GMC) .
1	Radio Front Center Speaker Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Front Center Speaker Procedure  Disconnect the electrical connector.
