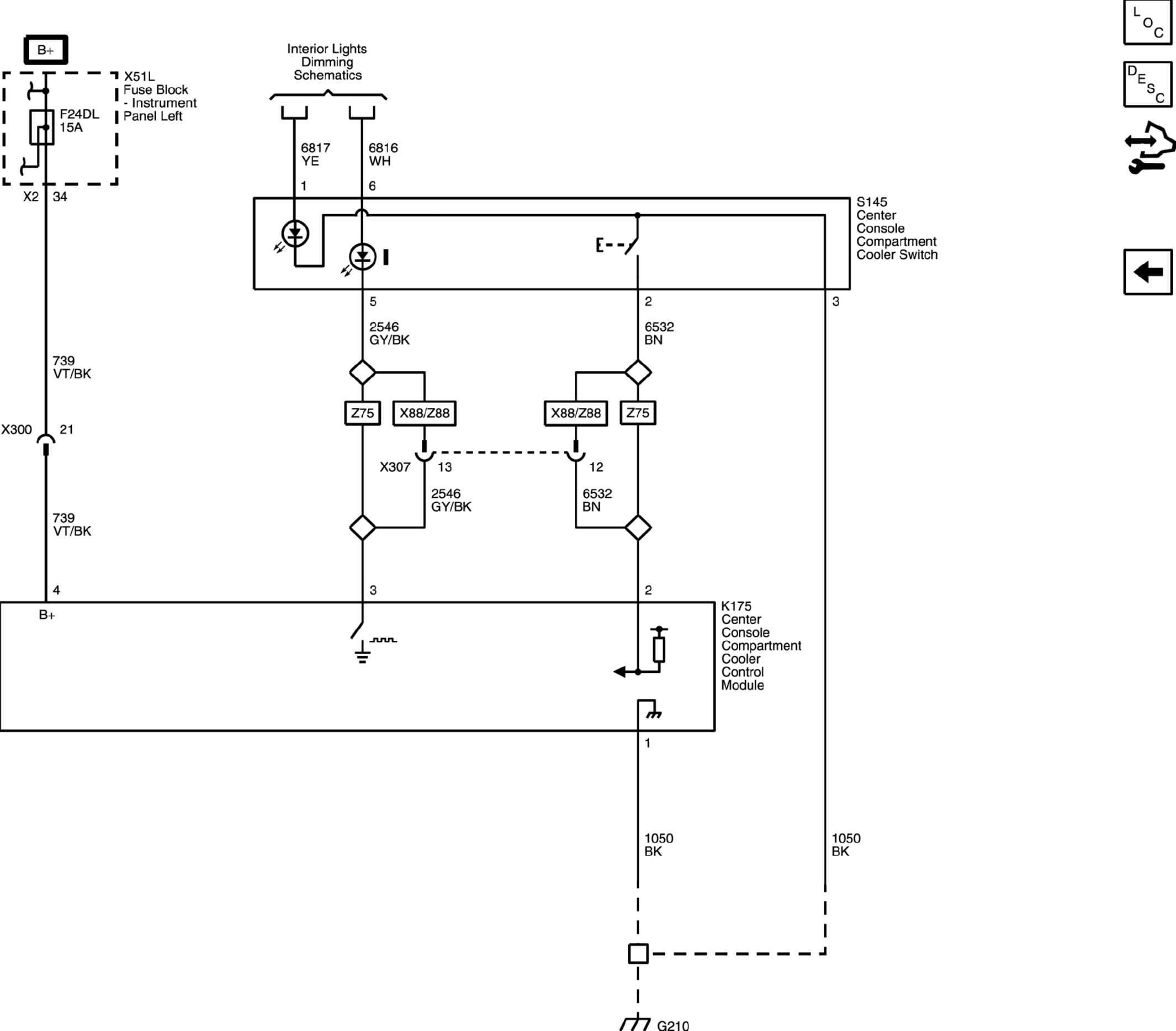

Home >> Chevrolet >> 2019 >> Suburban 3500 HD LS >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel Trim And Console Trim >> Schematic Wiring Diagrams >> Instrument Panel Compartment Wiring Schematics >> Cooler Box (DCK)
