Installation Procedure

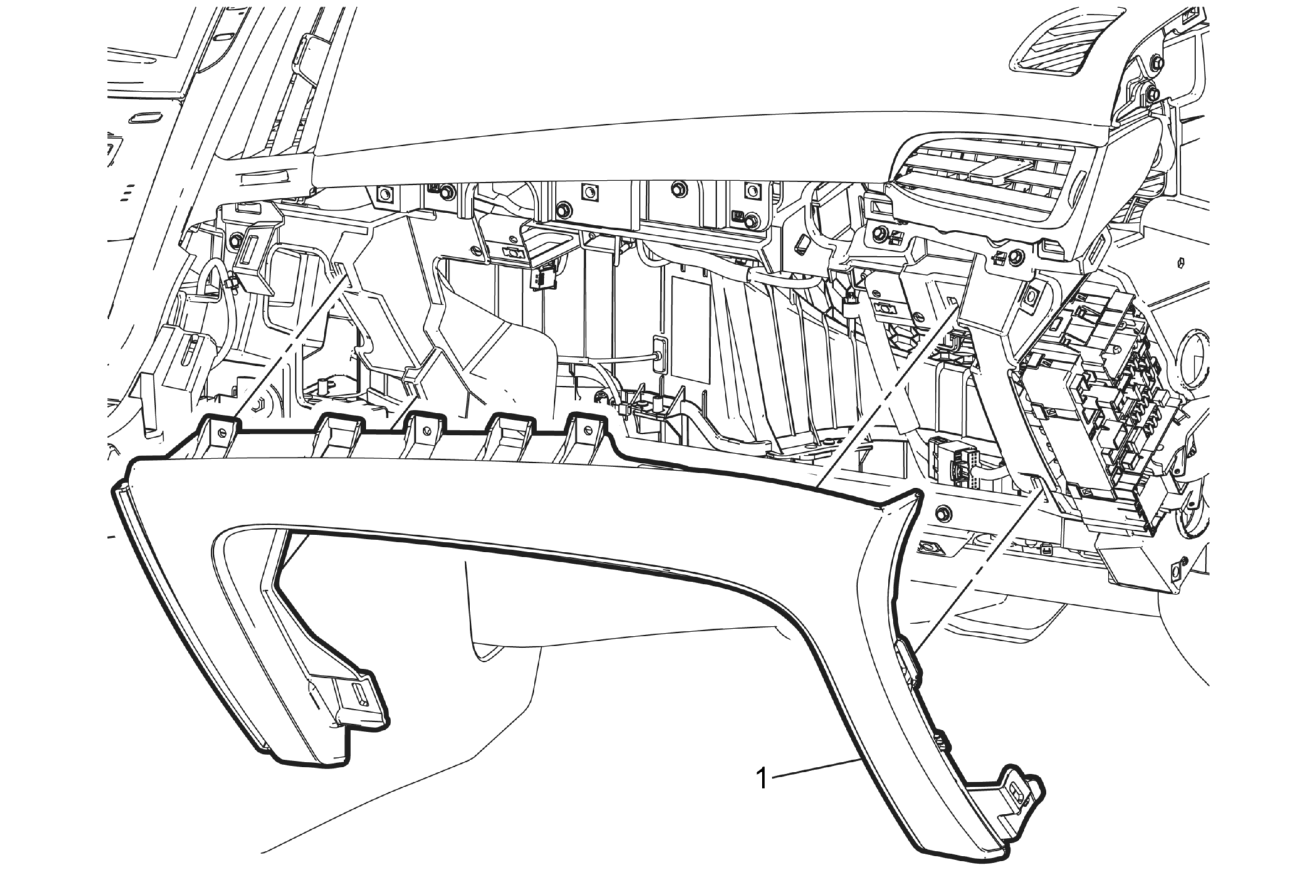

  1. GM3647731Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel lower trim panel (1) to the instrument carrier.

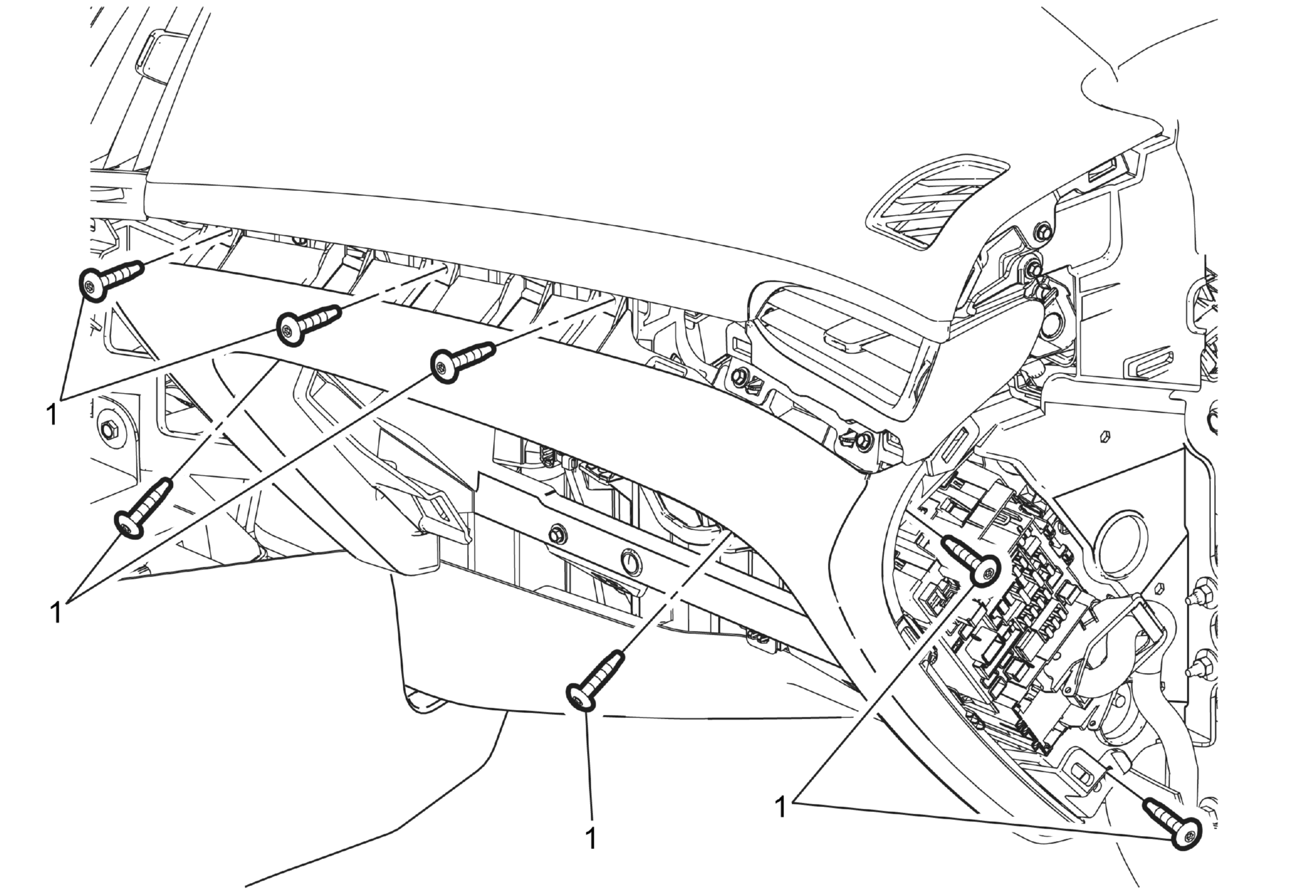

  2. GM3647730Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the bolts (1) securing the instrument panel lower trim panel to the instrument carrier and tighten to 2.5 N.m (22 lb in).

  3. Install the right front floor console applique. Refer to Front Floor Console Applique Replacement - Right Side (Cadillac) .
  4. Install the right instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Cadillac) .
  5. Install the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Cadillac) .
  6. Install the right instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement - Right Side (Cadillac) .
