Instrument Panel Lower Center Trim Panel Replacement (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

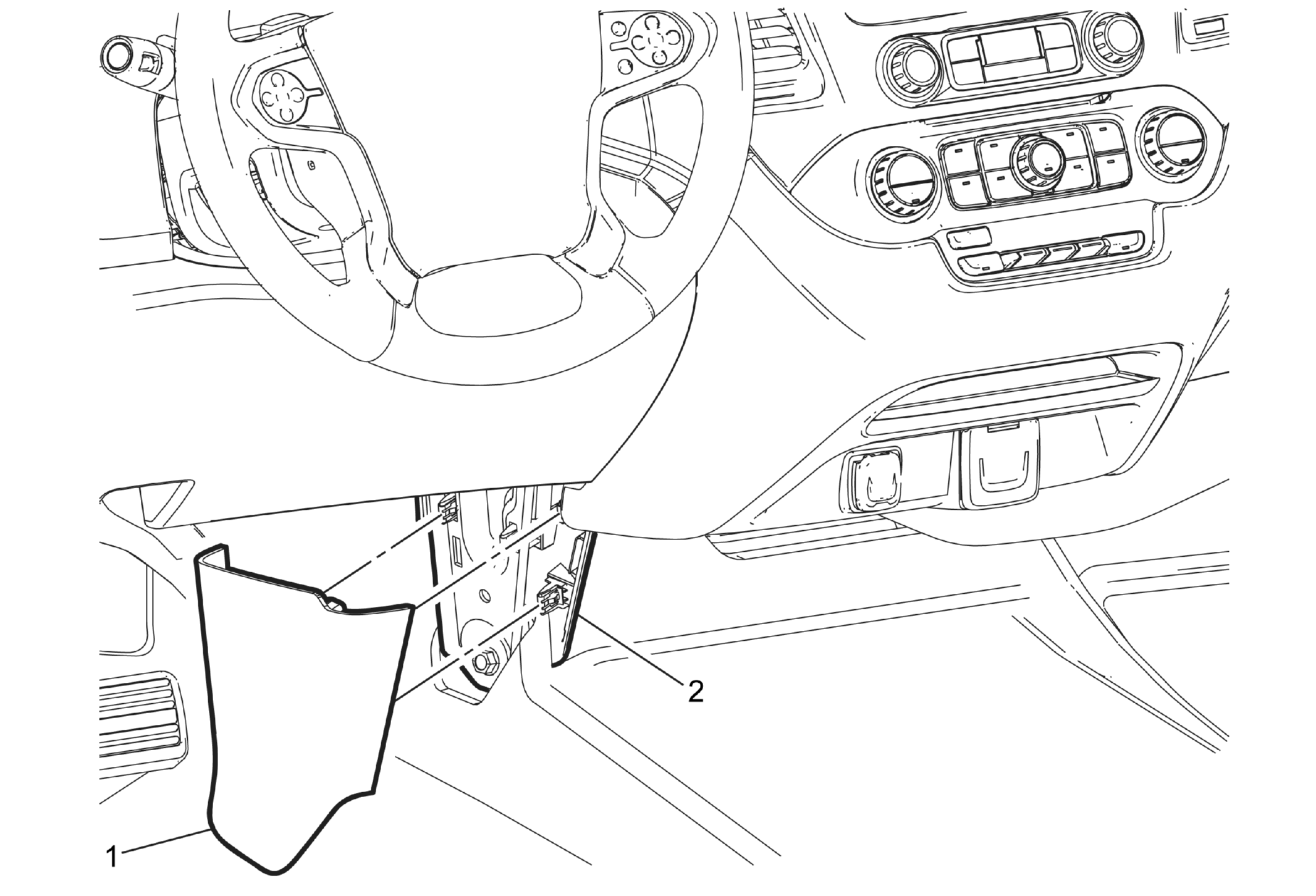

Callout	Component Name
1	Instrument Panel Lower Center Trim Panel - Left Side Procedure  Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the instrument panel tie bar brace.
2	Instrument Panel Lower Center Trim Panel - Right Side Procedure  Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the instrument panel tie bar brace.
