Instrument Panel Insulator Replacement (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

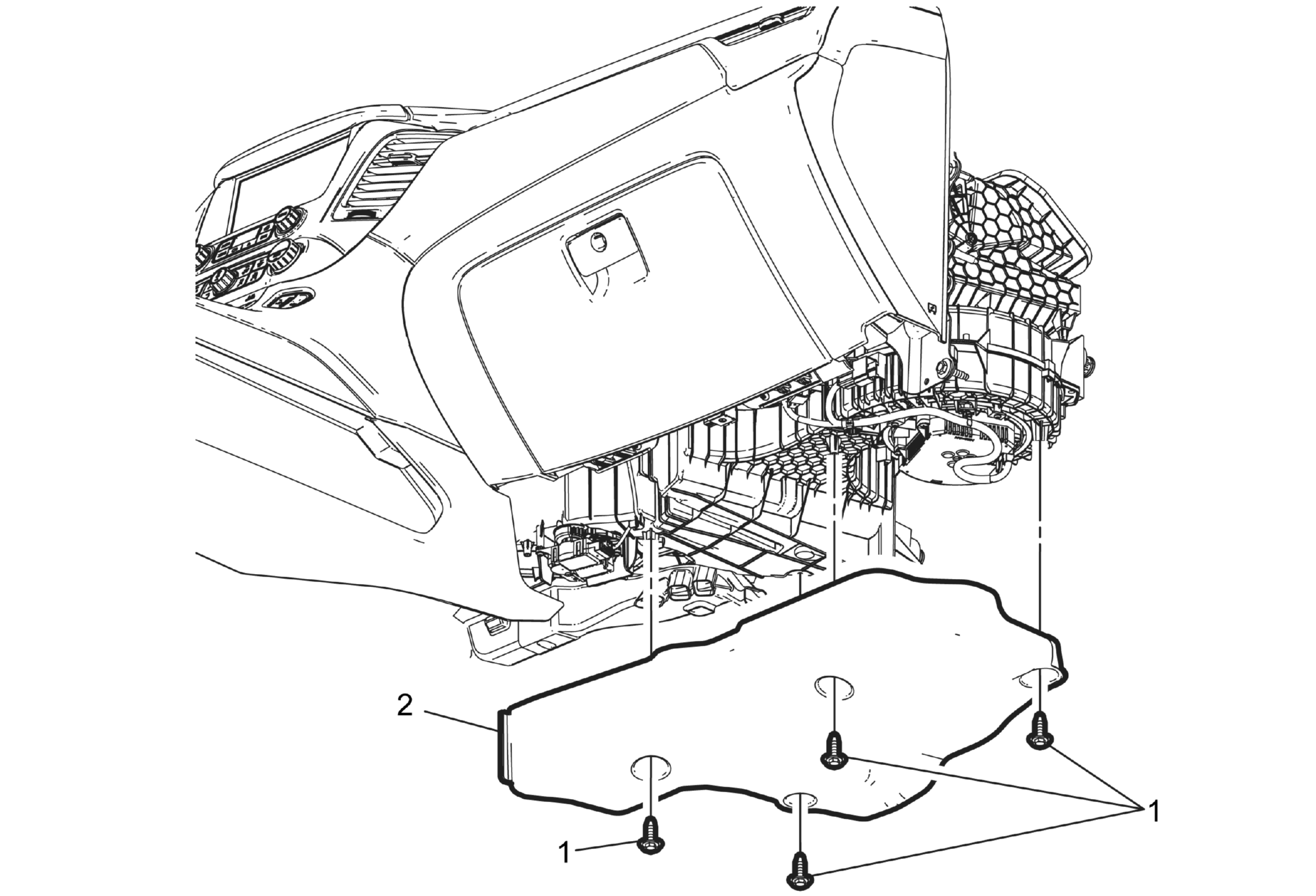

Callout	Component Name
1	Instrument Panel Insulator Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Insulator
