Installation Procedure

  1. When replacing the instrument panel compartment, transfer all necessary components.
  2. Connect the electrical connections.

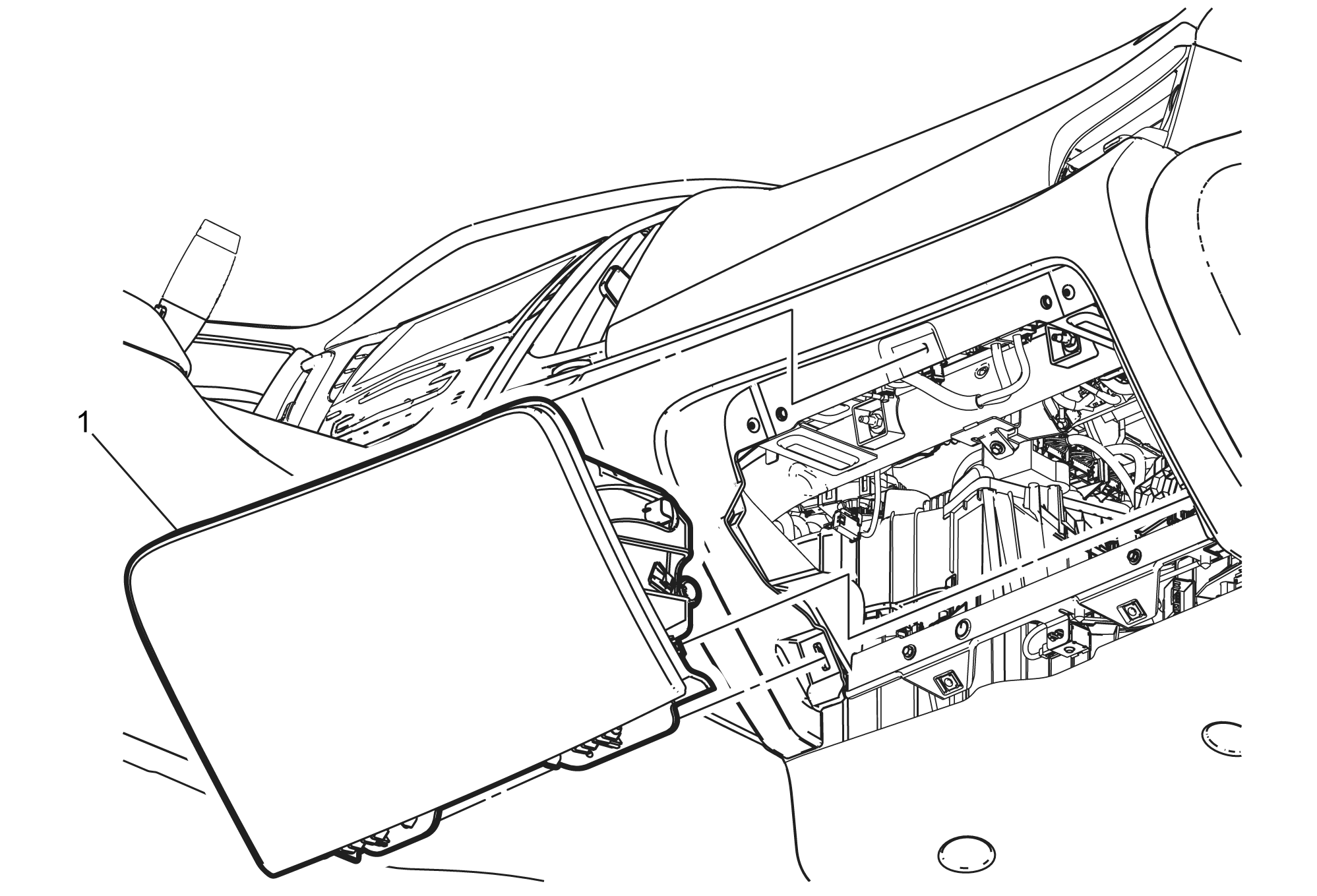

  3. GM3647619Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel compartment (1) to the instrument carrier.

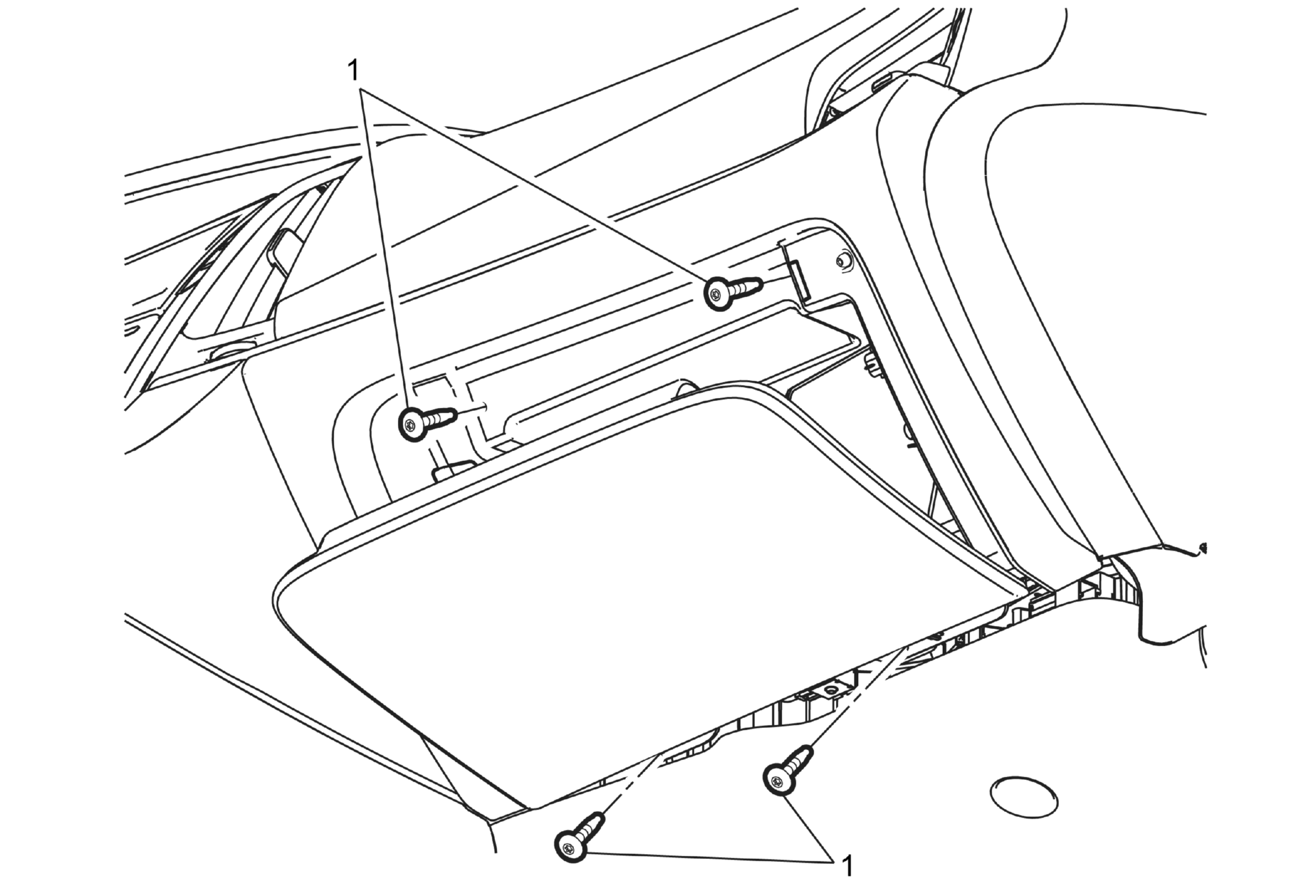

  4. GM3647616Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the bolts (1) securing the instrument panel compartment to the instrument carrier and tighten to 2.5 N.m (22 lb in).
