Instrument Panel Compartment Door Strut Replacement (Chevrolet / GMC)

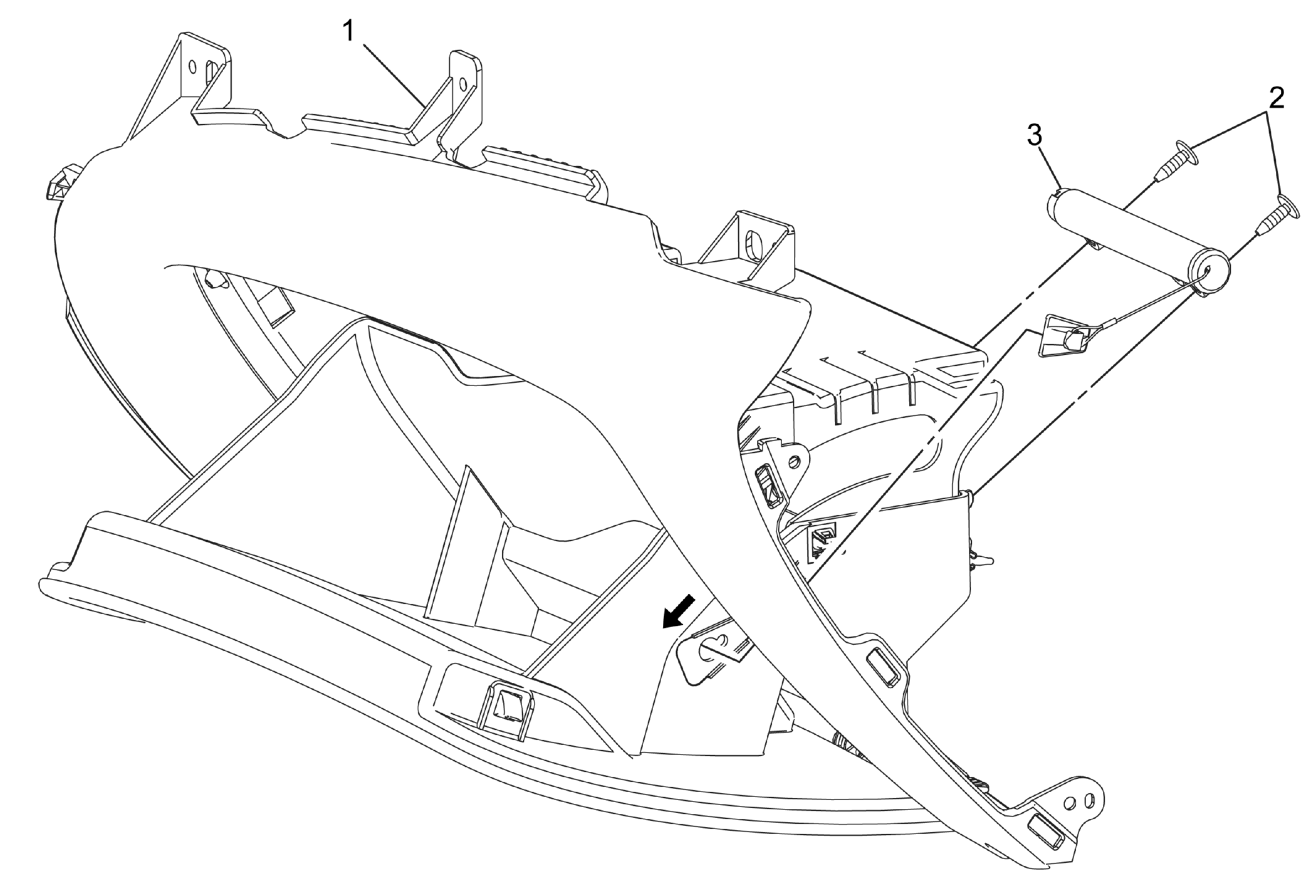

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Compartment Refer to Instrument Panel Compartment Replacement (Cadillac) |
| 2 | Instrument Panel Compartment Door Strut Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Instrument Panel Compartment Door Strut Procedure Use a suitable tool to release the instrument panel compartment door strut from the door. |
