Instrument Panel Compartment Door Dampener Replacement (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

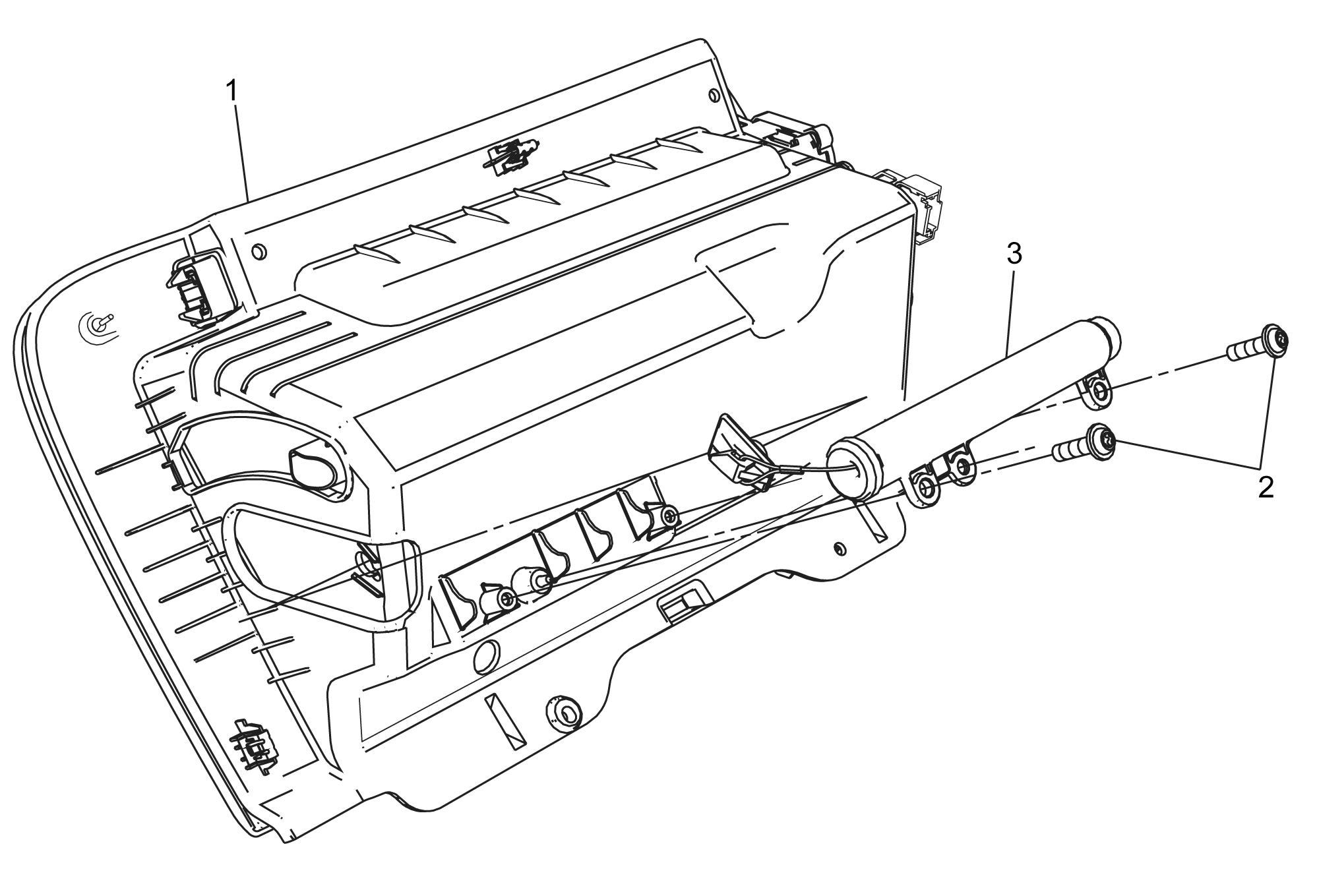

Callout	Component Name
1	Instrument Panel Compartment Refer to Instrument Panel Compartment Replacement (Cadillac) .
2	Instrument Panel Compartment Door Dampener Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
3	Instrument Panel Compartment Door Dampener Procedure  Disconnect the instrument panel compartment door dampener from the compartment assembly.
