Front Floor Console Outer Armrest Replacement

Courtesy of GENERAL MOTORS COMPANY

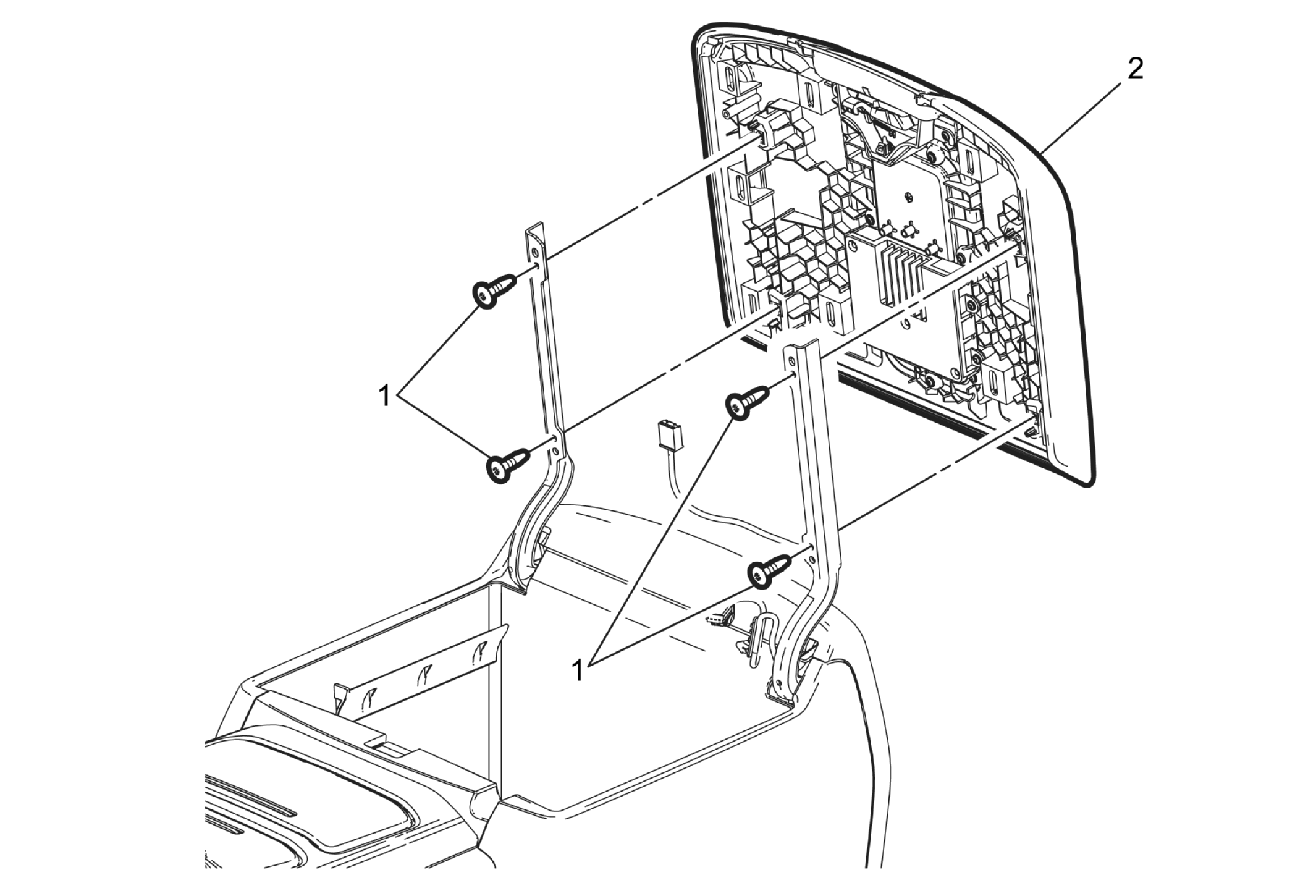

Callout	Component Name
Preliminary Procedure Remove the front floor console armrest hinge cover. Refer to Front Floor Console Armrest Hinge Cover Replacement .
1	Front Floor Console Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Outer Armrest Procedures Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the front floor console armrest hinge cover. Refer to Front Floor Console Armrest Hinge Cover Replacement .

Front Floor Console Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Outer Armrest

Procedures
