Front Floor Console Compartment Bezel Replacement (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

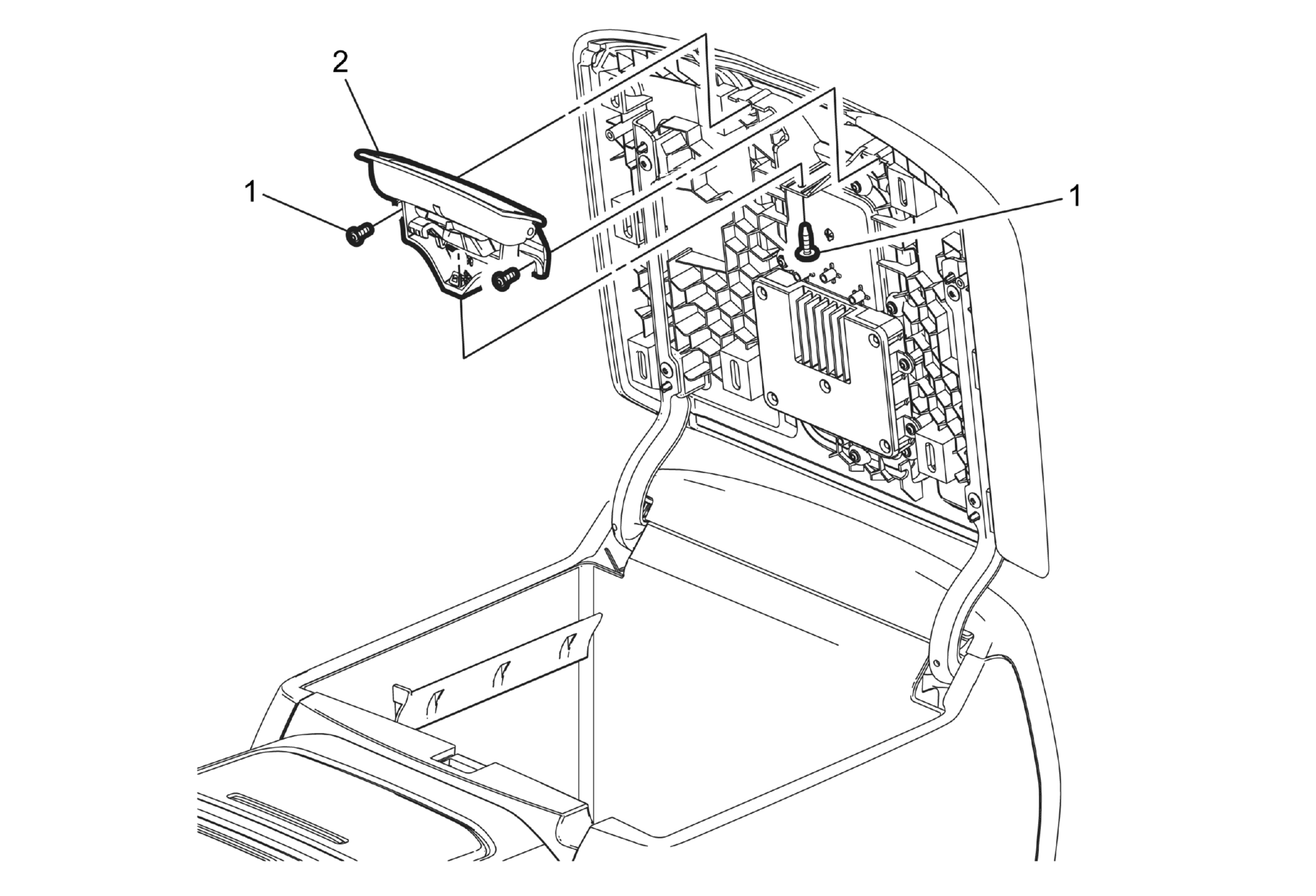

Callout	Component Name
Preliminary Procedure  Remove the front floor console armrest hinge cover. Refer to Front Floor Console Armrest Hinge Cover Replacement .
1	Front Floor Console Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Compartment Bezel
